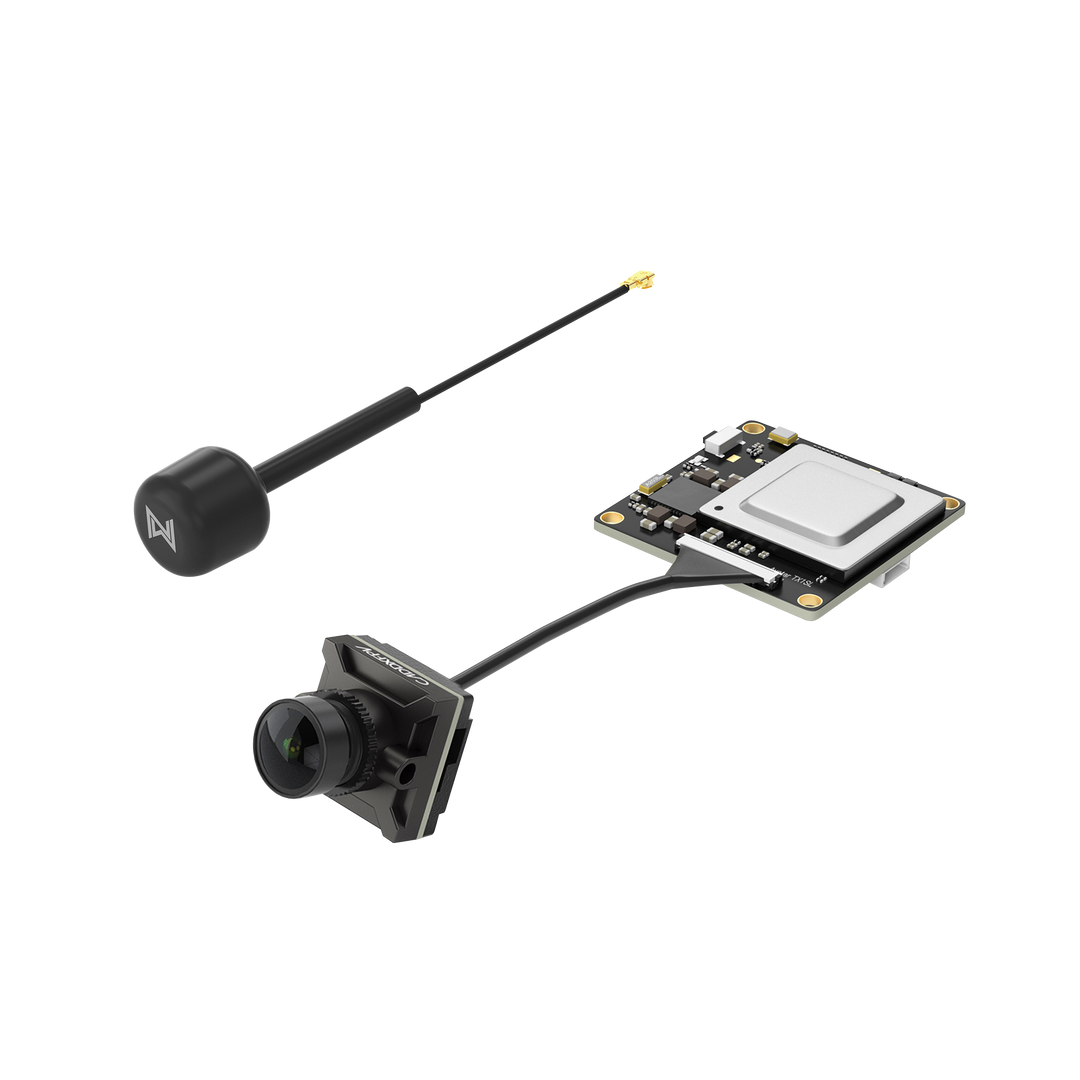

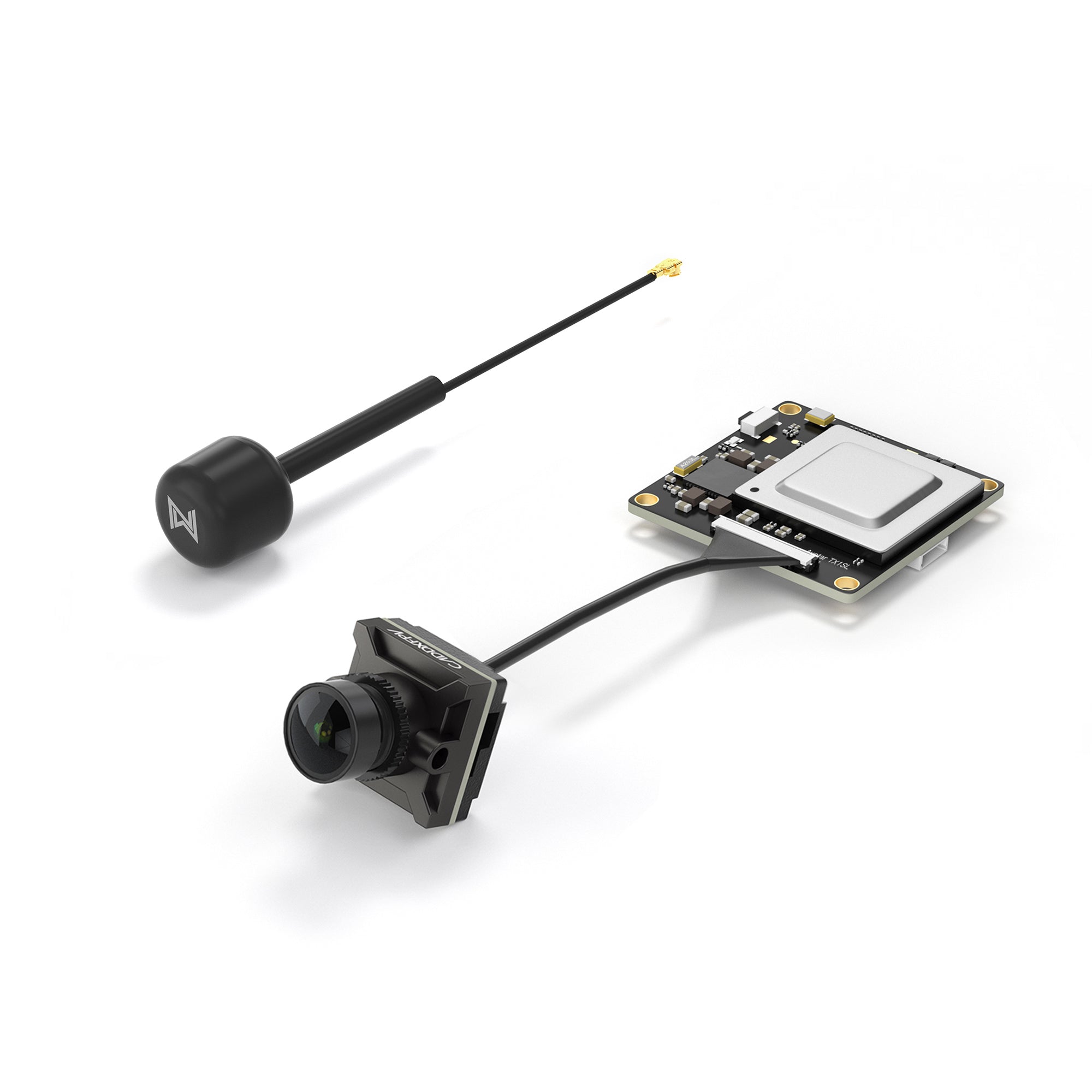

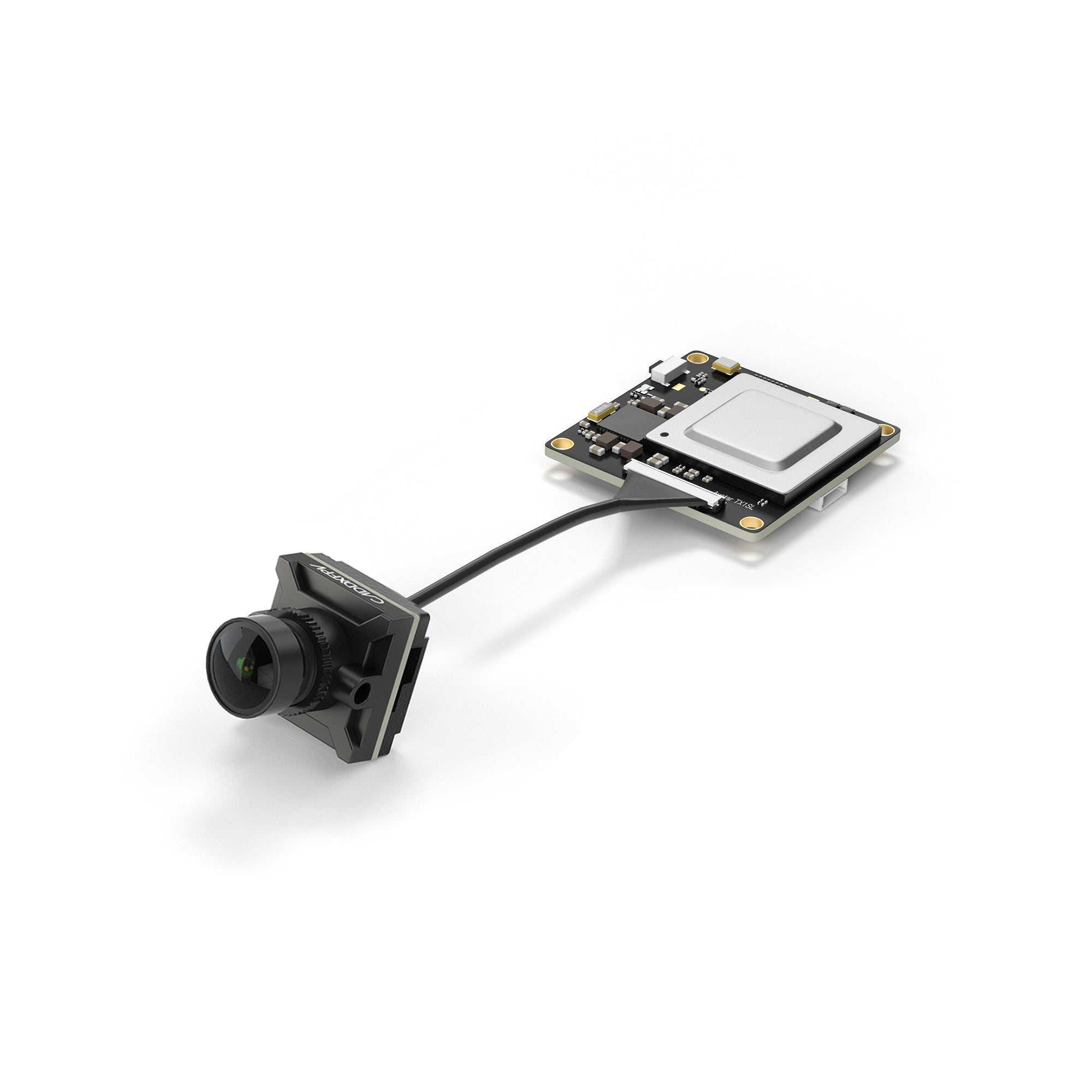

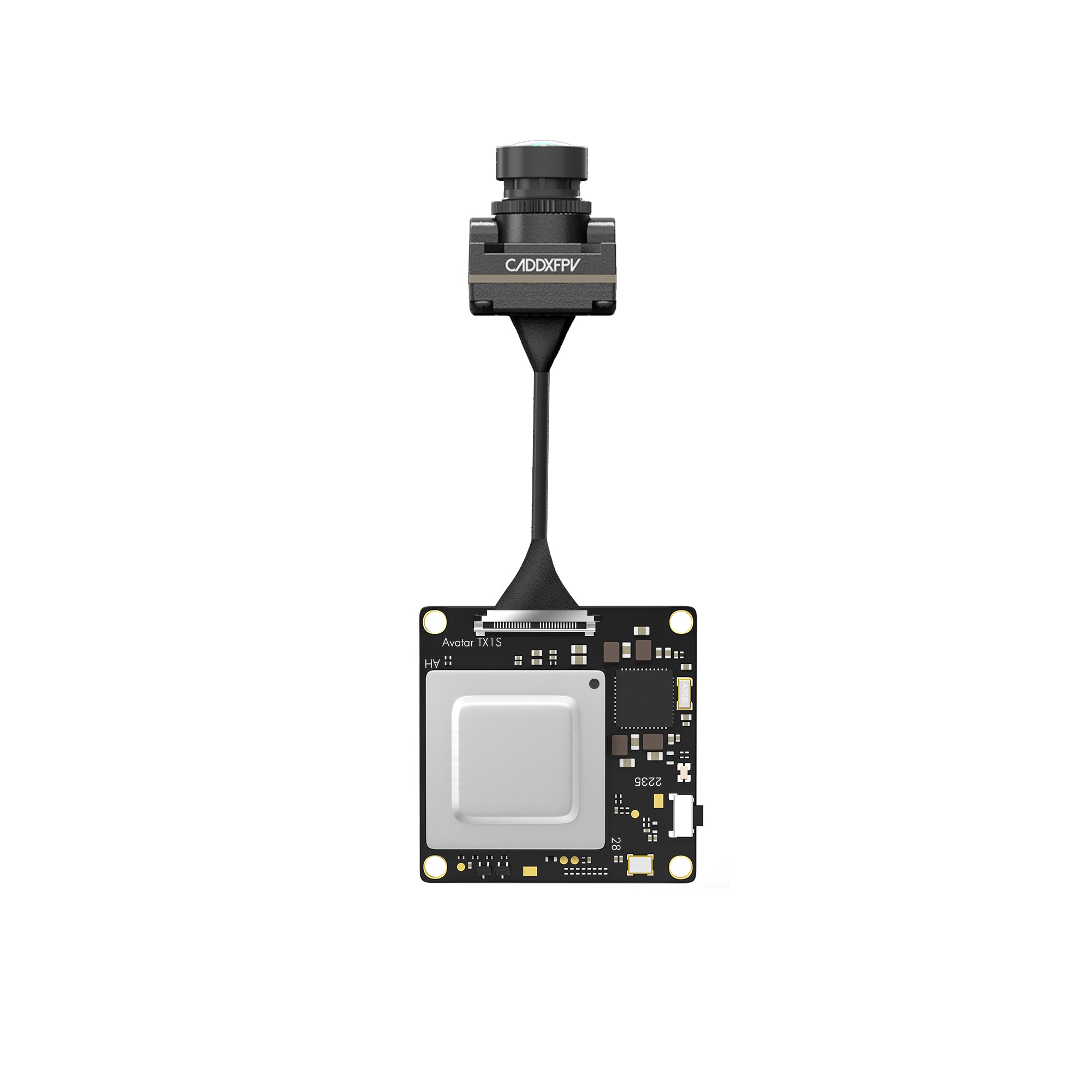

Walksnail Avatar HD Mini 1s Kit

SKU: WN04-1004S
Size
Price
Regular price $109.00
Regular price $109.00 Sale price $109.00
Save <span class=transcy-money>$0</span>
/
Shipping calculated at checkout.
  • Secure payments

Features:

1080P/60fps 3.1V-13V
22ms low latency Power 500mW
Built-in 32G storage 6.8g light weight



Bullet Points:

1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

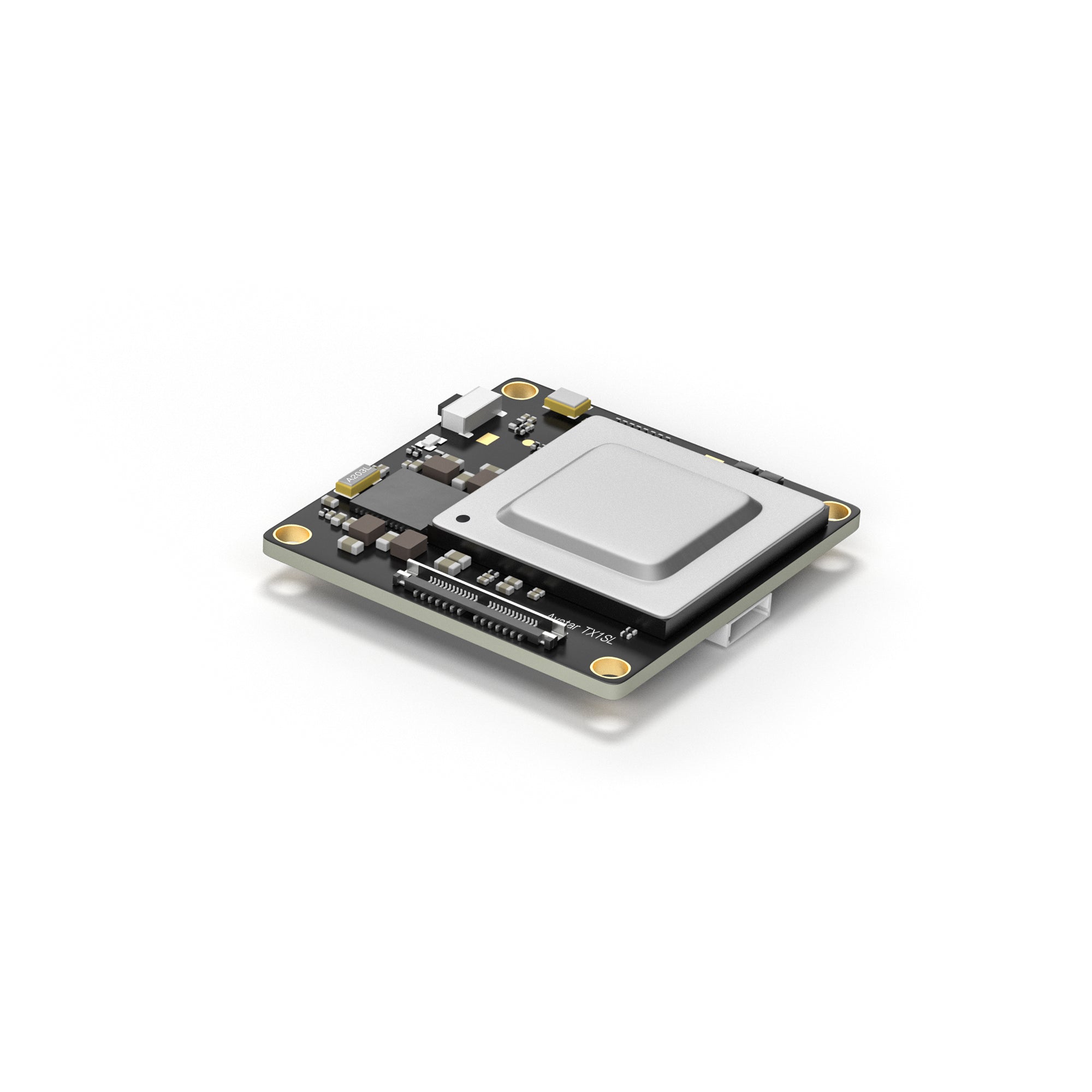

6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.



22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.



32G Built-in Storage
The Avatar mini 1s vtx comes with 32g built-in storage,it can record 1080p
with 60fps or 720p with 100fps/60fps HD flight videos without interference.

Specification


Camera
Model    Avatar nano
Image Sensor  1/2.7”1nch
Resolution   1080P/60fps,720P/120fps,720P/60fps
Ratio       16/9  4/3
Lens  2.1mm
FOV     170°
Aperture     F2.0
Shutter Rolling  shutter
Min.Illumination   0.001Lux
Weight  3.5g
Dimensions  14*14*17mm
Coaxial Cable  55mm(default)/90mm
VTX
Model Avatar mini 1s module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<25.5dBm; CE:<14dBm;
SRRC:<20dBm; MIC:<25dBm
I/O Interface JST1.0*6(Power in)JST0.8*4(USB)

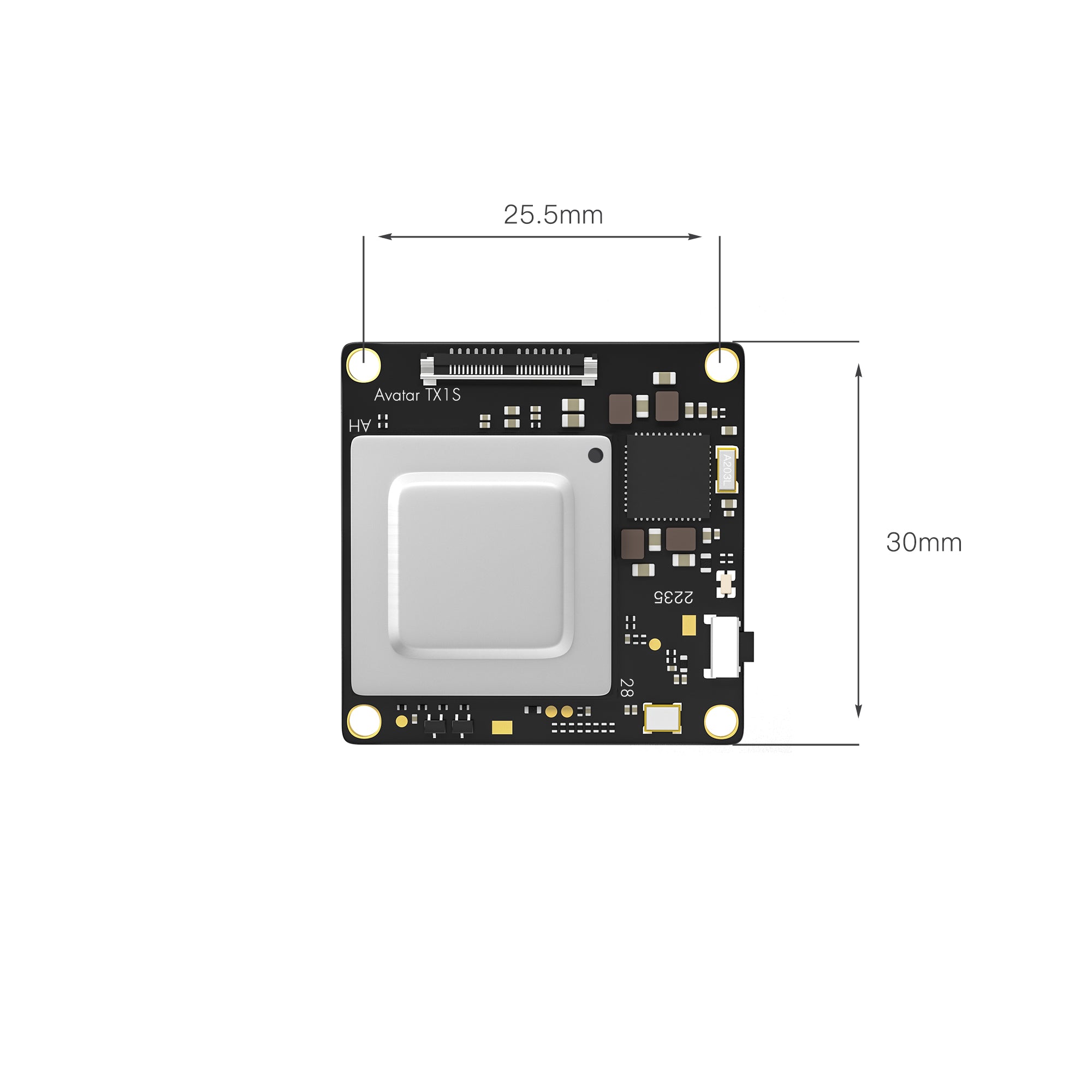

Mounting Holes 25.5*25.5mm
Dimensions 30*30*6.5mm
Storage 8G(v2) / 32G(v3)
Recording 1080p/720p
Weight 6.8g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 3.1V-5V(V2) / 3.1V-13V(V3)
Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPliot
OSD Canvas mode
Bitrate 25mbps 50mbps
Latency Average latency 22ms
Antenna IPEX
VTX Antenna
Model Avatar V2 antenna
Polarization LHCP
Bandwidth 5600MHz-6000MHz
Average Gain 1.9dBi
VSWR <1.5
Line Length 90mm
Input Impedance 50Ω
Interface IPEX-1
Dimension D15mm*L105mm
Weight 2g
Packing List
Avatar Mini 1S KIT  X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4mm Screws  X2
M2x16mm Screws   X4
M2 Screw nut  X4
2.1x3.4x1mm Gasket   X5
