Preface About GM1/GM2/GM3
Based on pilots feedback and implement head tracking function of goggles, our R & D department team has designed gimbals specifically for FPV cameras. This series includes three models: single-axis, dual-axis, and tri-axis, catering to various user needs. The design of the gimbal is primarily aimed at enhancing the pilot's experience, providing them with stable, smooth images, allowing them to easily capture stunning aerial videos and photos. With the addition of the head tracking function, it creates an immersive feeling.
Features:
| Enhanced FPV Experience | Head Tracking Functionality |
| Exceptional Stability | Quick Assembly |
| Compatibility | Flexibility |
Bullet Points:
CADDXFPV gimbal is designed to work perfectly with Avatar HD goggles, enabling head tracking functionality. This feature allows the gimbal to follow the movement of your head, making you feel as if you are in the cockpit, enhancing your FPV adventures with unmatched realism and control.
CADDXFPV gimbal uses advanced mechanical stabilization to effectively reduce camera shake during flight, ensuring clear and smooth footage even in unstable environments.
Easily manage gimbal modes and sensitivity through the Avatar goggles menu or via PWM controls, giving you precise control over your gimbal’s behavior.
No matter if you are using an FPV drone, RC FPV Wing, or RC car, CADDXFPV gimbal series provides the perfect solution for your needs. The gimbal's broad compatibility ensures it fits seamlessly with various FPV setups. Enhance your FPV experience with unparalleled stability and control, and capture stunning footage every time.
Equipped with a coaxial cable to connect with VTX, enabling seamless head tracking functionality, and ensuring a fully immersive FPV experience. The quick assembly process makes it simple for anyone to set up and start using the gimbal.
Available in three models—single-axis, dual-axis, and three-axis—our gimbal caters to the diverse needs and applications of users. Whether you're a professional pilot or an amateur enthusiast, The flexibility of CADDXFPV gimbals ensures they can meet the demands of any FPV application.
Q: When will it be shipped?
A: In order to give pilots a better experience. Currently, each order will be shipped within 15 working days.
Q: Are GM1/GM2/GM3 compatible with all walknsail VTX?
A: The gimbal can't be used with V1 VTX, Mini 1s, Nano V3 and GT VTX, but can only be used with V2 VTX, V2 VTX Dual and Moonlight VTX.
| Specification | |
| Model | GM1 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | pitch: ±120° |
| Size | 32.2x38.1x20.5mm |
| Weight | 16g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.0W |

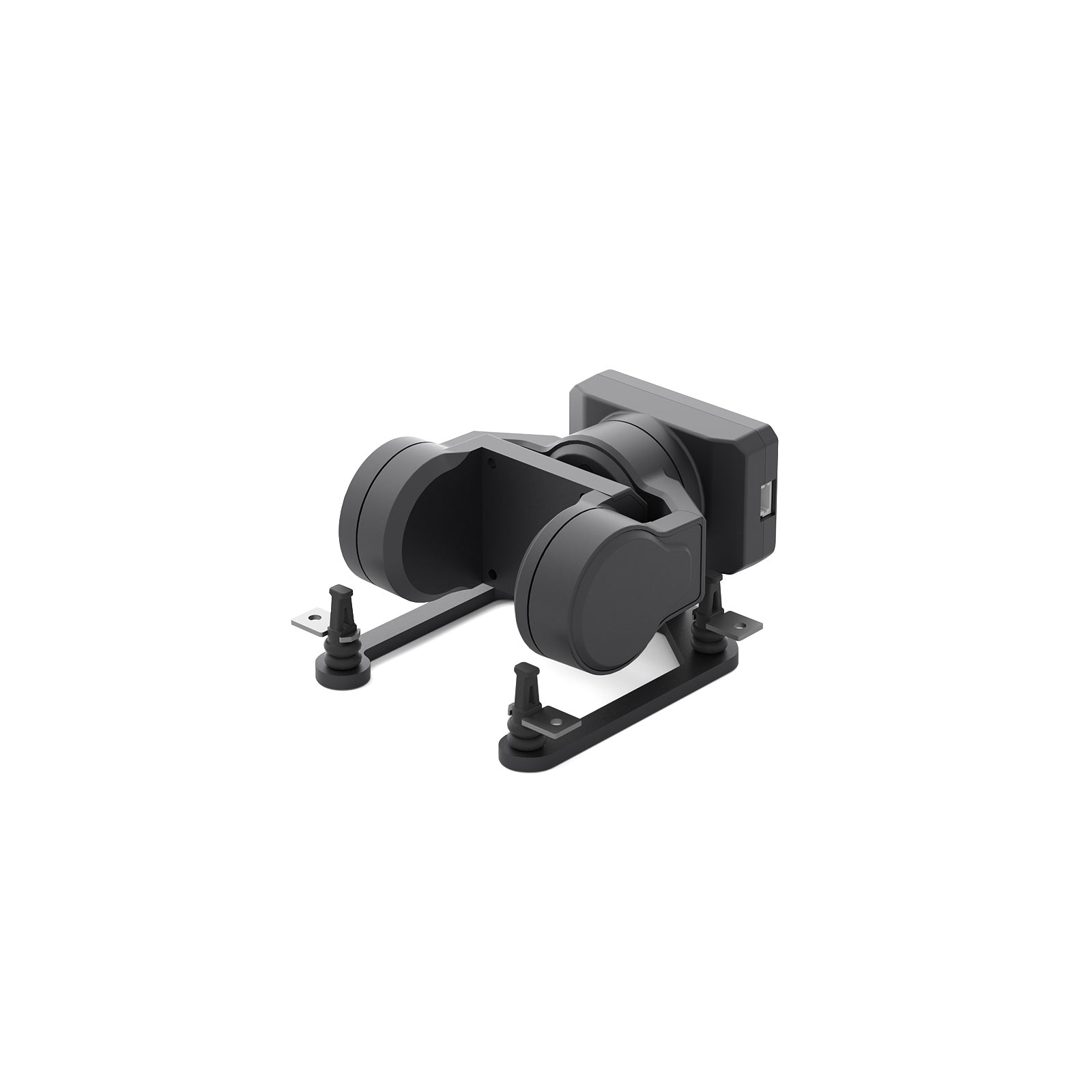

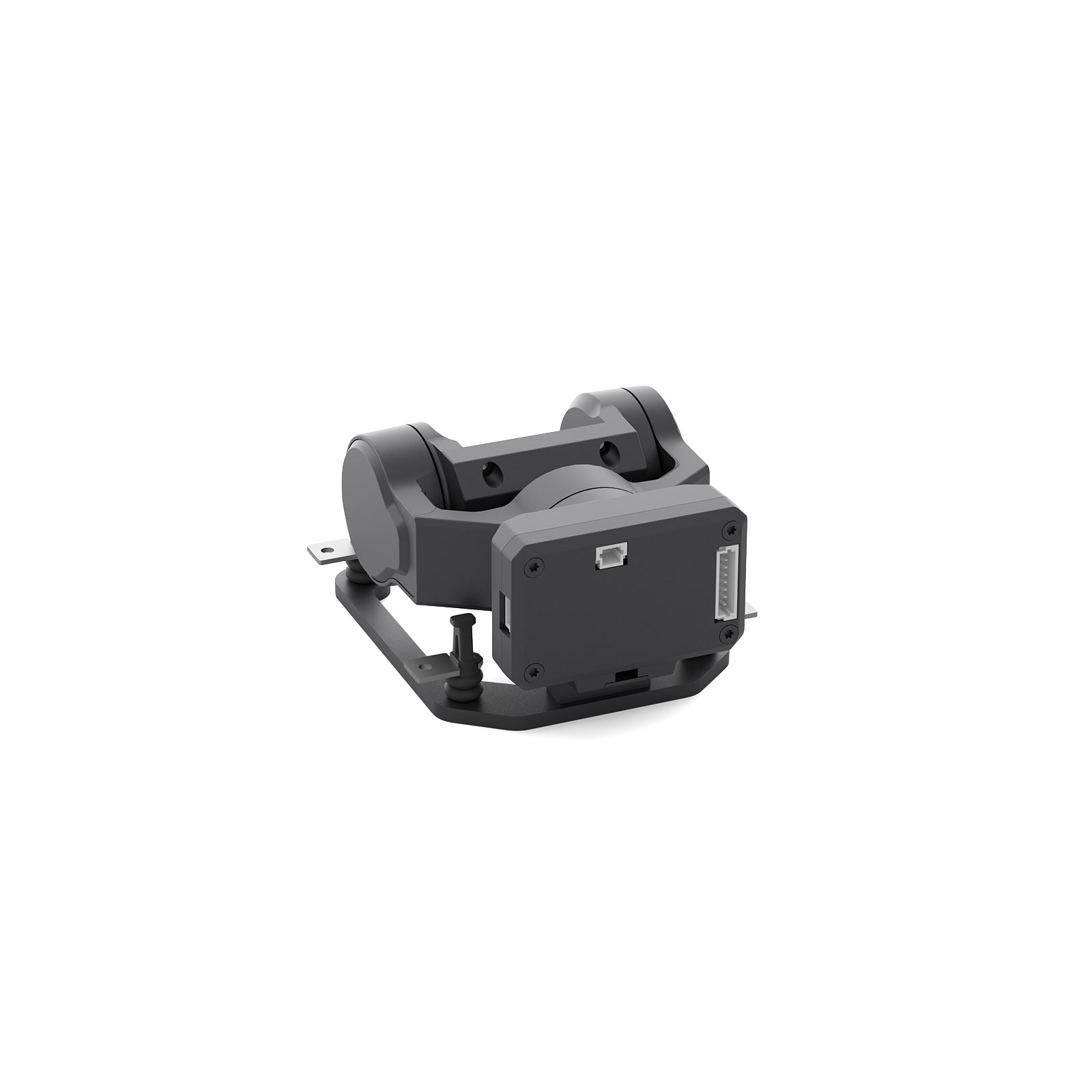

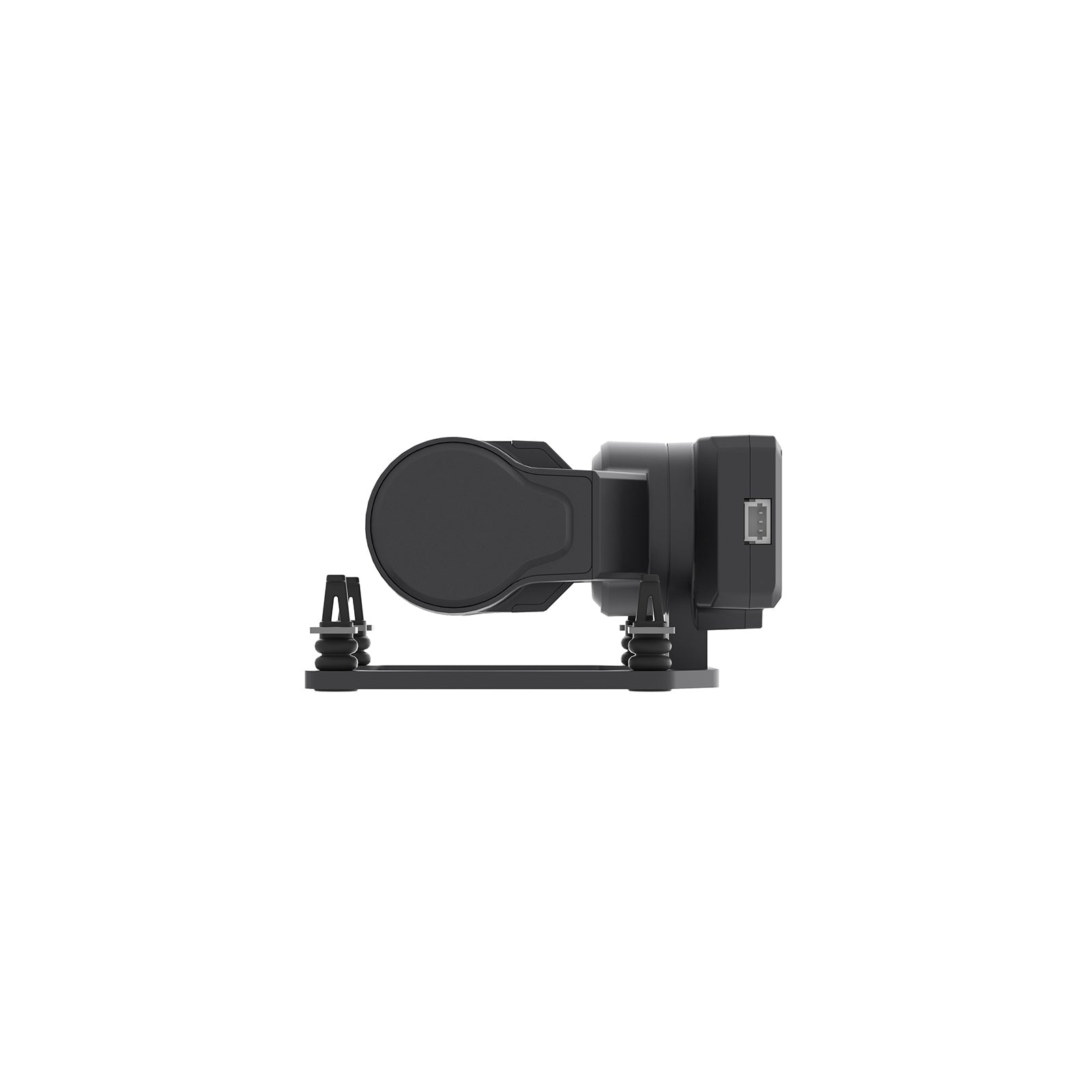

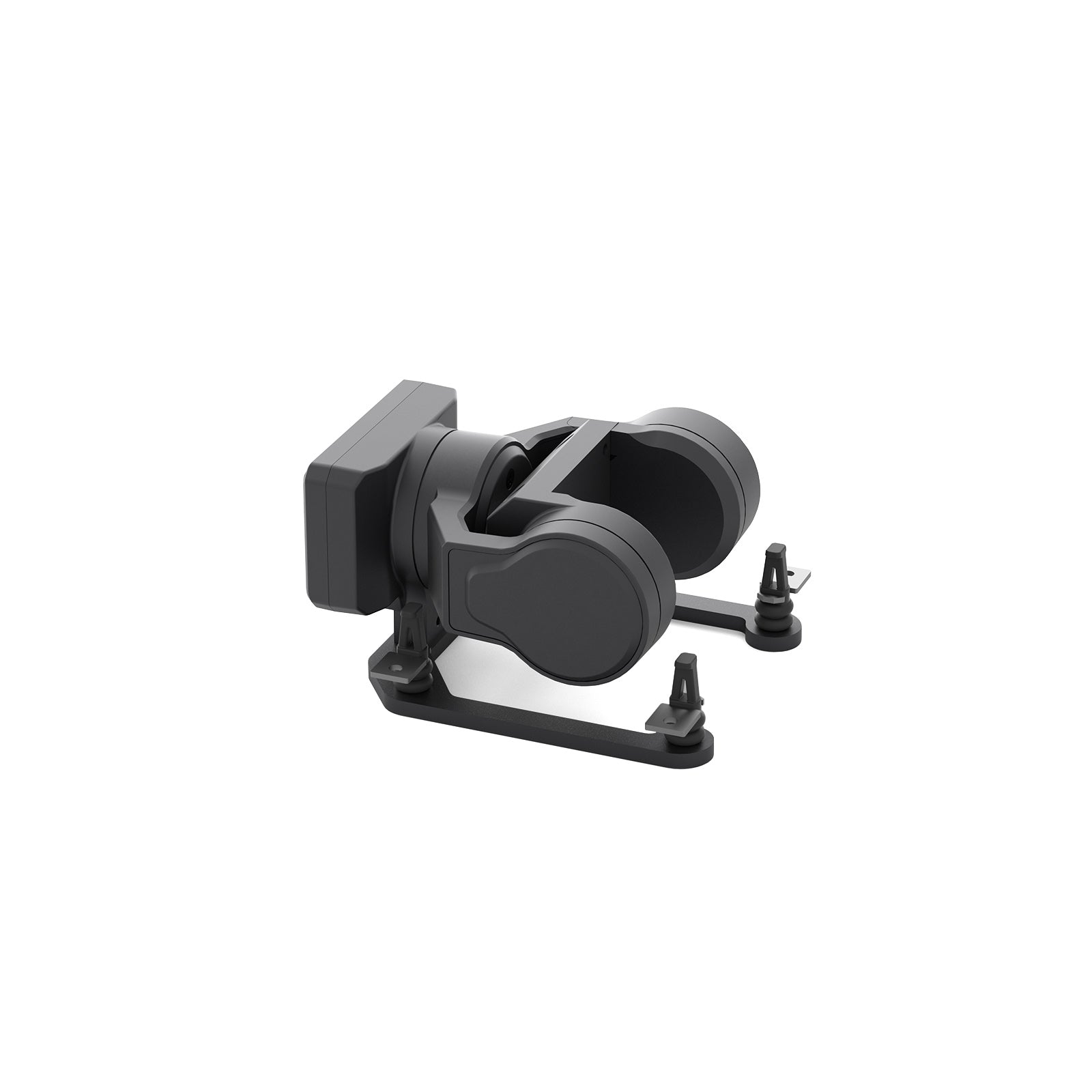

| Model | GM2 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | Pitch: ±120°, Roll: ±60° |
| Size | 46.7x46.5x26.2mm |
| Weight | 30g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.2W |
| Model | GM3 |
| Camera Compatibility | 19mm FPV Camera |
| Image Stabilization | ±0.005° |
| Max Controllable Speed | ±1500°/s |
| Max Controlled Rotational Range | Pitch: ±120, Roll: ±60, Yaw: ±160° |
| Size | 50x46.5x53mm |
| Weight | 46g |
| Control Mode | PWM /UART |
| Head Tracking Control | Support |
| Voltage | 7~26V |
| Static Power Dissipation | 1.5W |
| Packing List | |
| GM1/GM2/GM3 | X1 |
| Power Cable | X1 |
