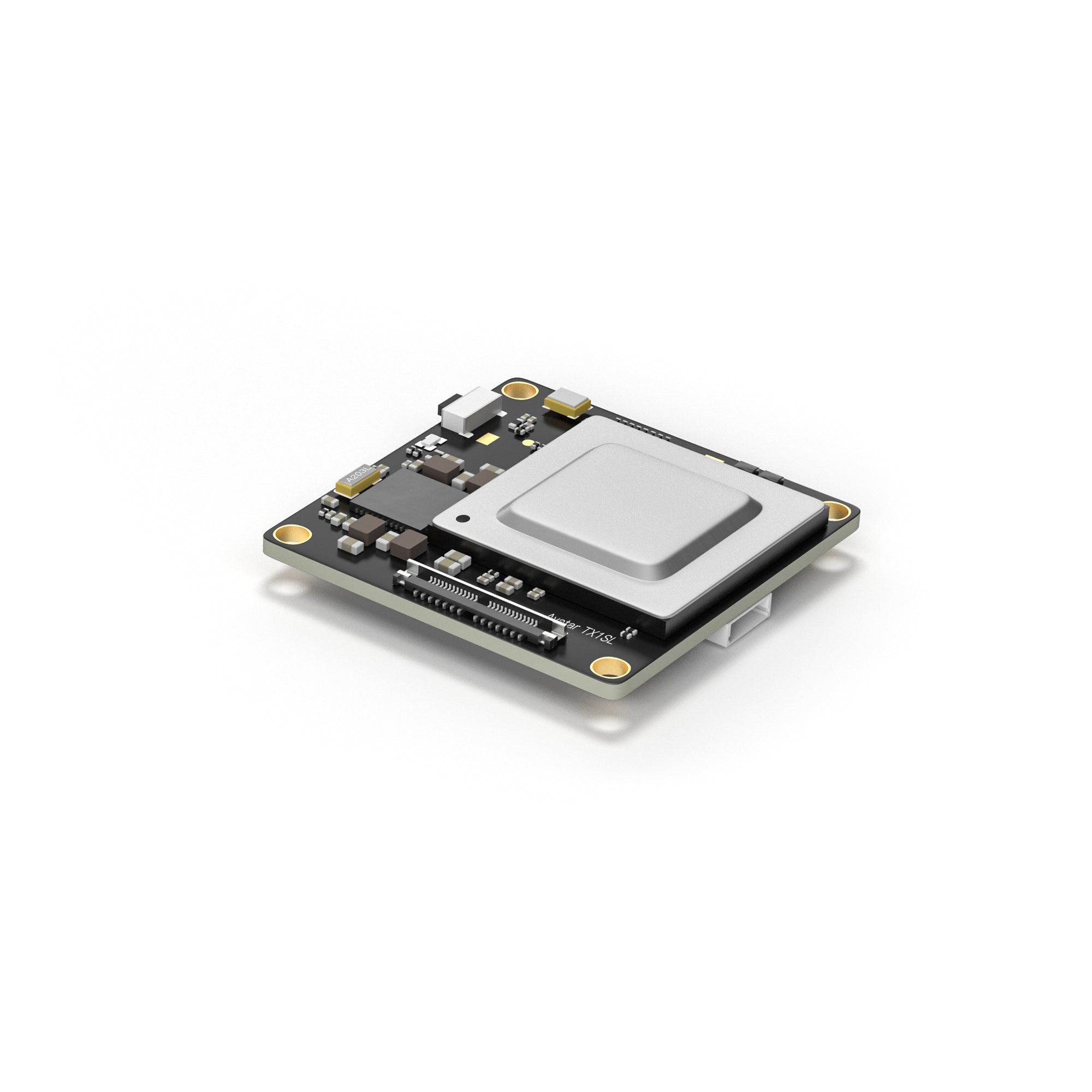

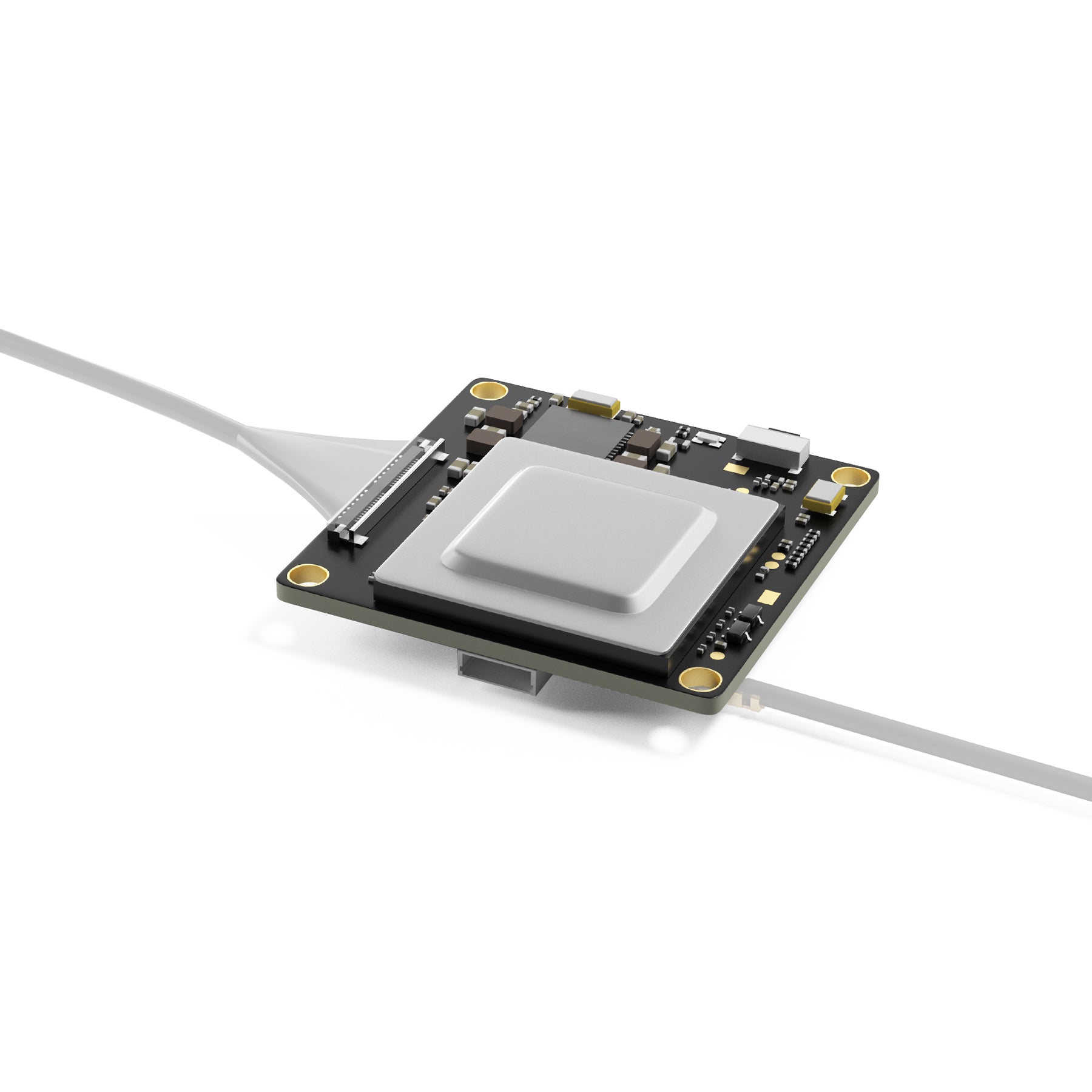

Walksnail Avatar HD Mini 1s And Mini 1s Lite Module
Walksnail Avatar HD Mini 1s And Mini 1s Lite Module
Sale price$79.00
July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)
USB Cable needs to be purchased separately
Specification |
|
| VTX | |
| Model | VTX For Walksnail Avatar HD Mini 1s And Mini 1s Lite |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*4(Power in)JST0.8*4(USB) |

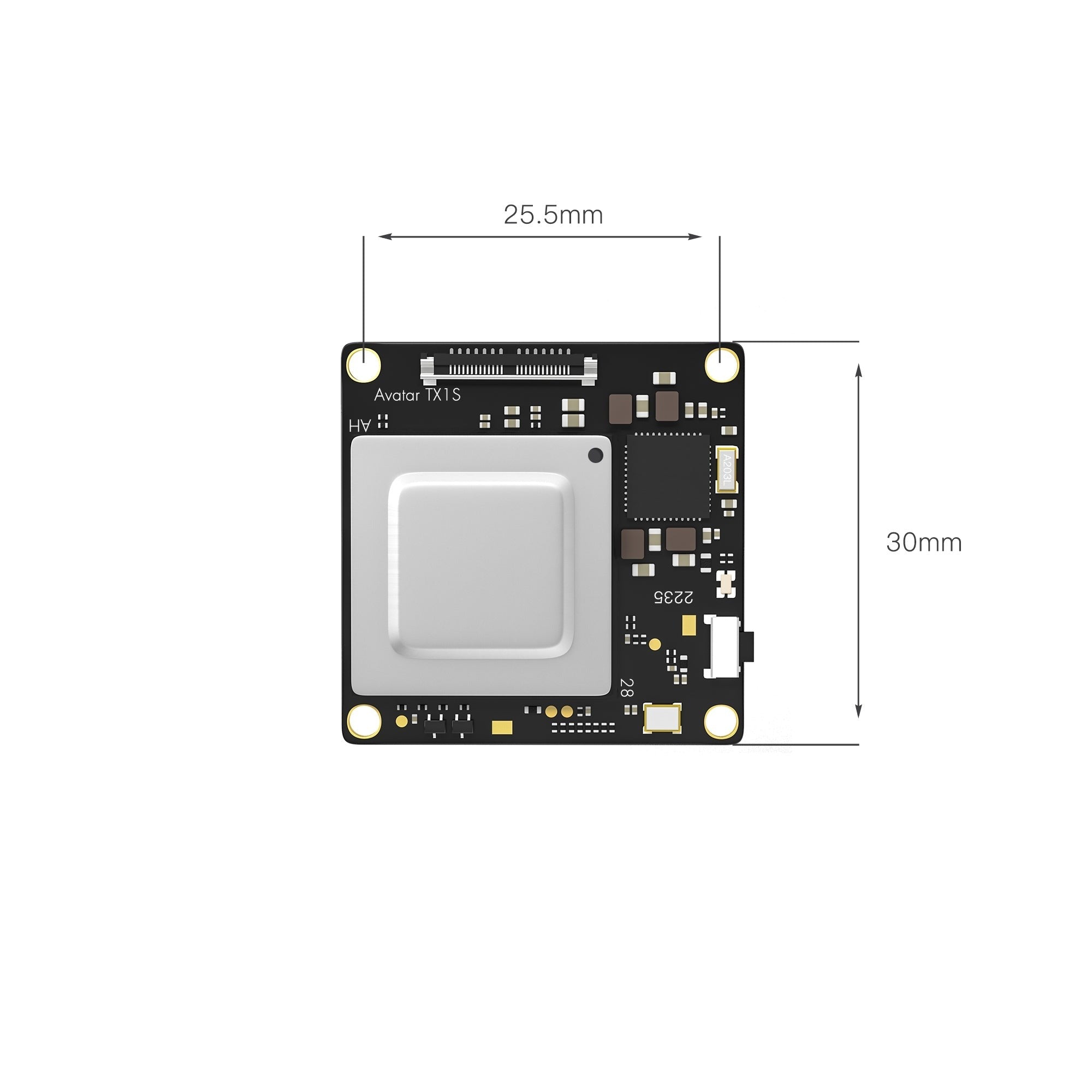

| Mounting Holes | 25.5*25.5mm(M2 hole);20*20mm(M3 hole) |
| Dimensions | 31.5*31.5*9.4mm |
| Storage | 32G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-13V |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Latency | Average latency 22ms |
| Antenna | 1(IPEX) |
