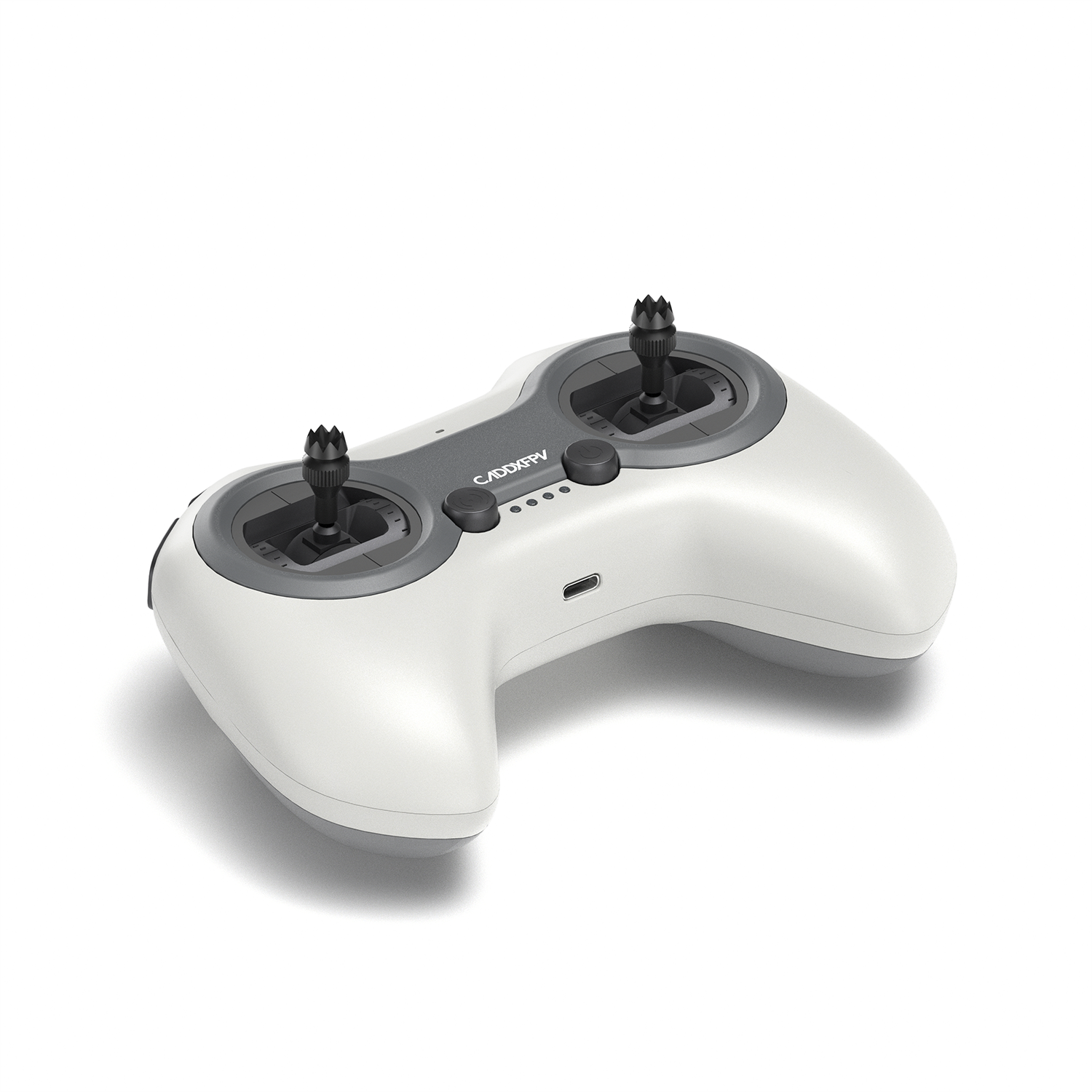

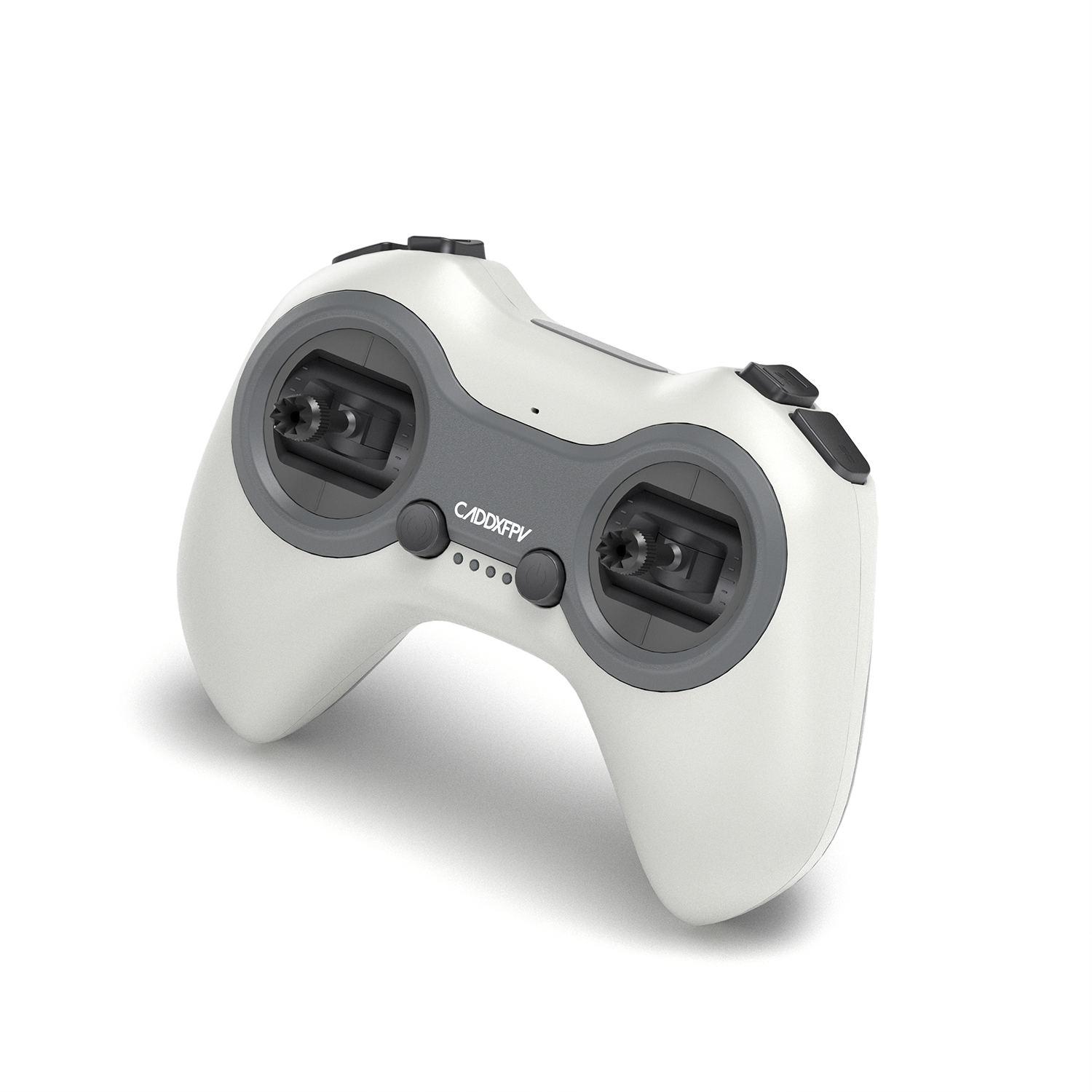

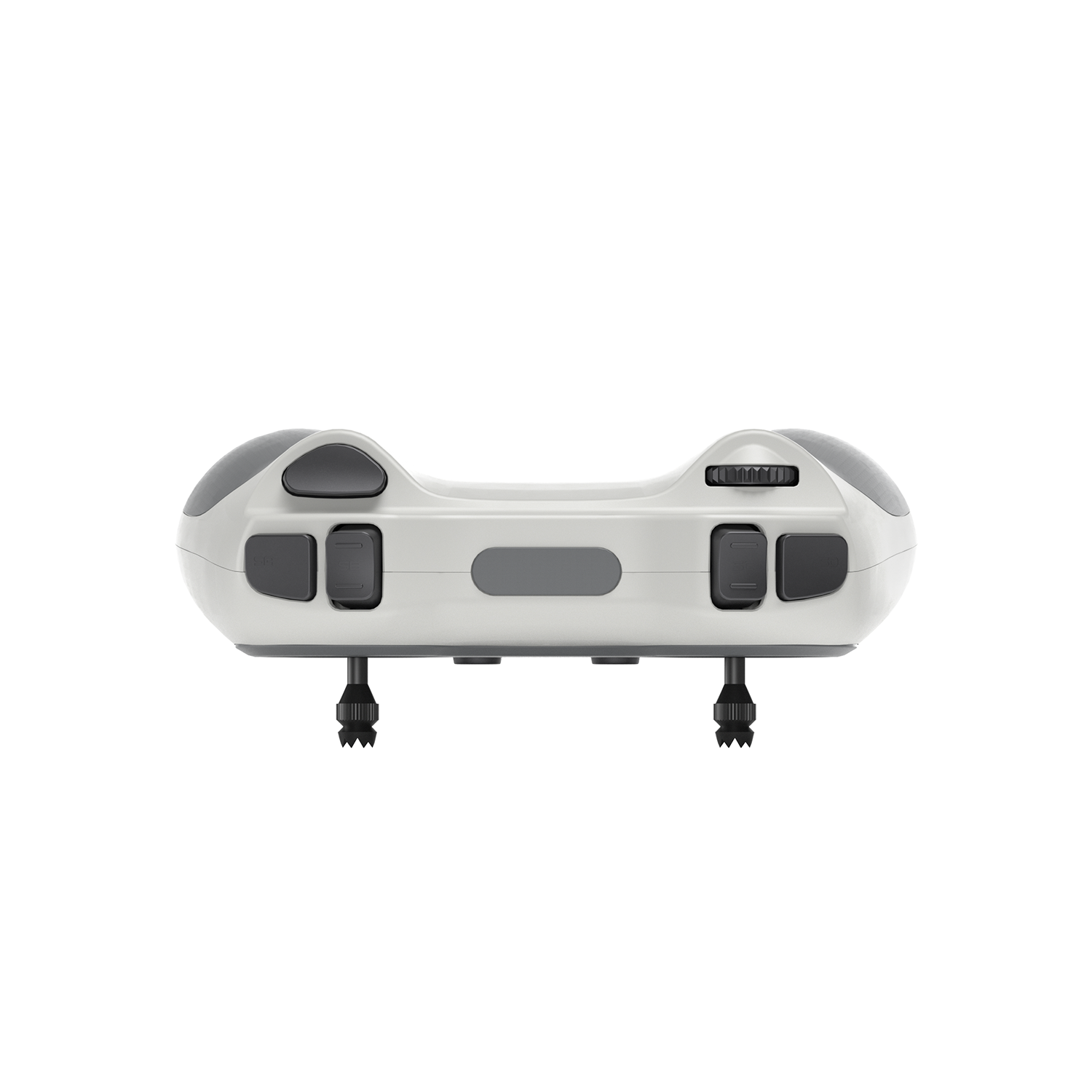

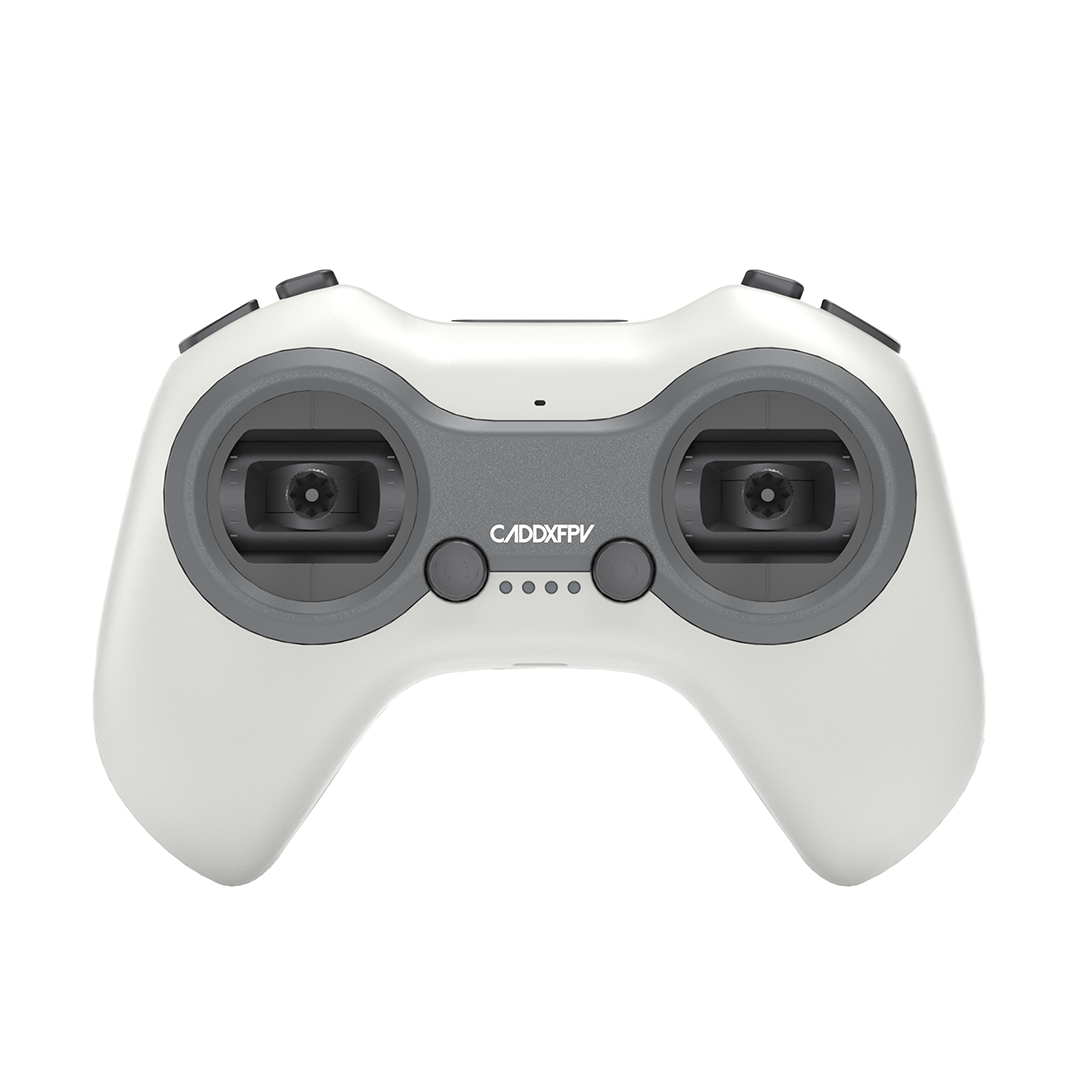

CaddxFPV Alink Controller
This product is equipped with a built-in ELRS 2.4GHz RF module and a 10-channel RC model remote controller. It can be used to control any RC model equipped with an ELRS 2.4GHz receiver.
Note: Mode 2 Only.
FPV Flight Simulator

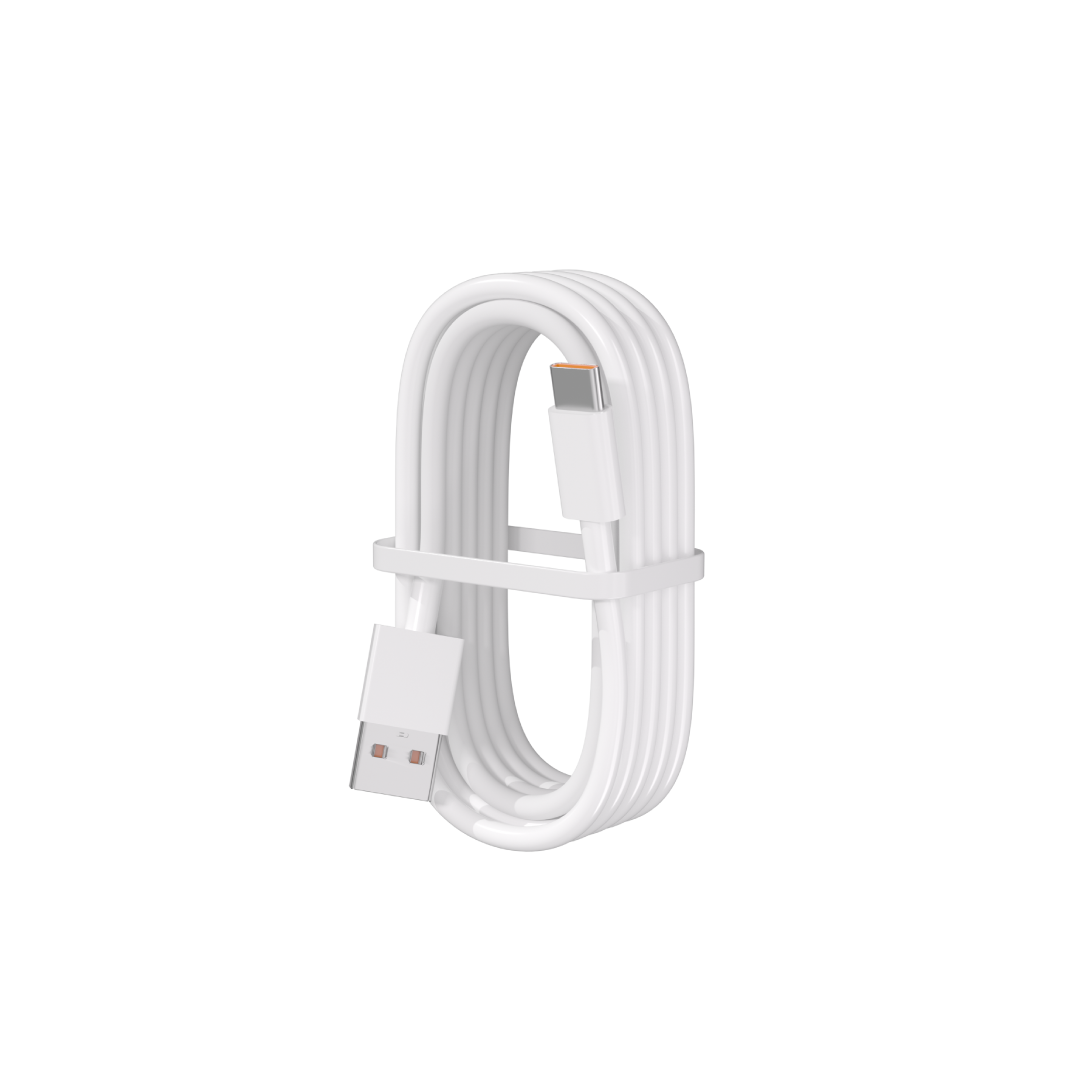

This product can be directly connected to a computer using a Type-C data cable. The Type-C port is located at the center of the back of the remote controller. Once connected, you can use an FPV simulator for practice.
| CADDXFPV Alink | |
| FCC IC | 2BHG9-C0PJ-YKL19 |
| Main Control Chip | AT32 F413RCT7 |
| RF Module | ELRS 2.4GHZ |
| RF Protocol | CRSF |
| Max RF Power | 100mW (20dB) |
| Number of Available Channels | 10 Channels (including 4 joystick channels) |
| Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |

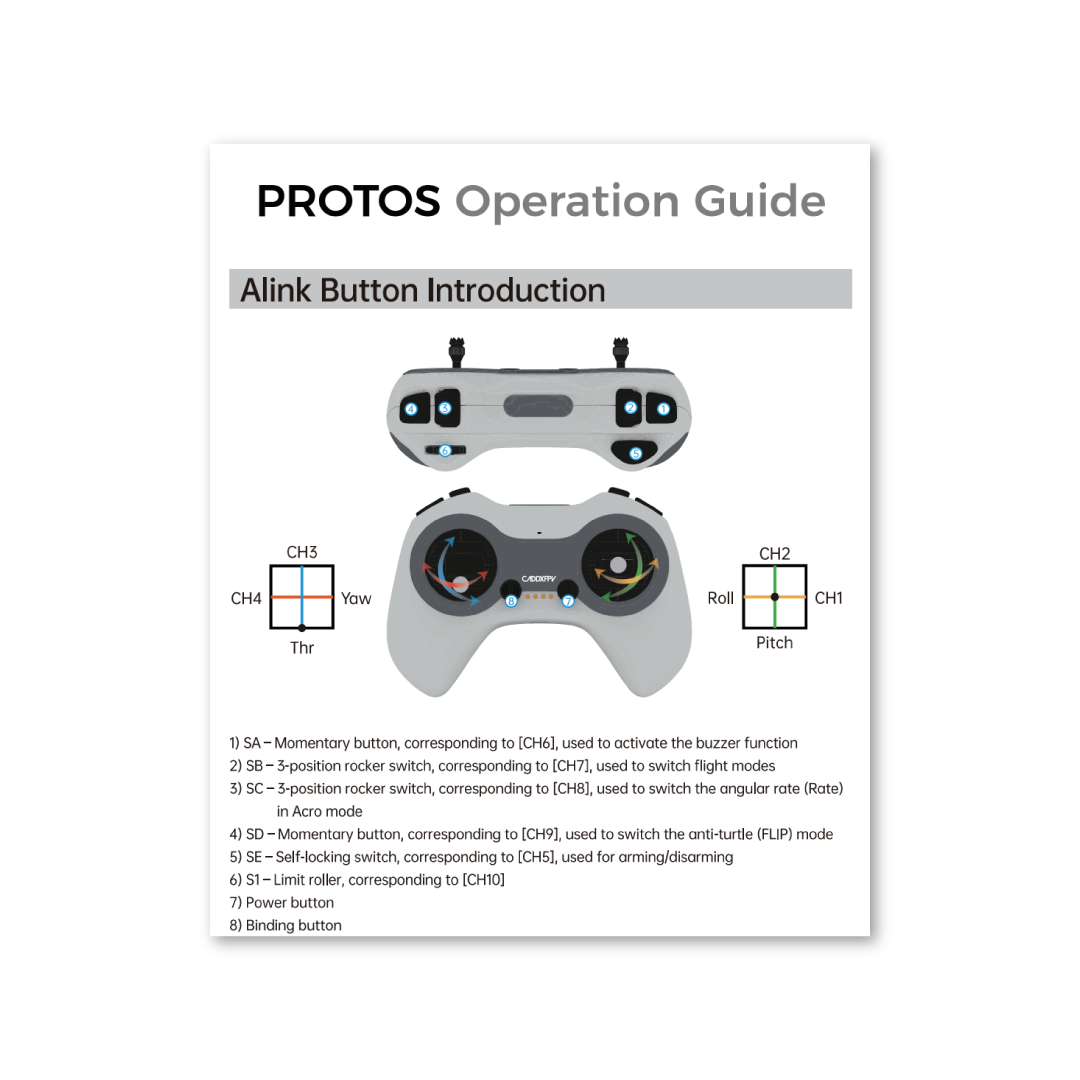

| Function Switch | 1 x Latching Button / 2 x Momentary Buttons /2 x 3-Position Toggle Switches / 1 x Scroll Wheel |
| Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
| Charging & Communication Interface | USB-Type C |
| Battery Specification | Lipo 1s 1000mAh |
| Max Charging Power | 5V / 1A / 3.50W |
| Charging Time | ≈90:00 min |
| Operating Voltage Range | DC 3.50V~4.20V |
| Dimensions | 158mmx108mmx58mm |
| Weight | 180g±5g |
FAQ
Is the Alink Controller compatible with Walksnail Avatar systems?
Yes. CaddxFPV Alink features a built-in ELRS 2.4GHz RF module and a 10-channel RC transmitter, compatible with RC models equipped with ELRS 2.4GHz receivers. It is also compatible with both Ascent systems and Avatar systems.
Which goggles or devices support the Alink Controller?
Yes. CaddxFPV Alink features a built-in ELRS 2.4GHz RF module and 10-channel RC transmitter, supporting RC models with ELRS 2.4GHz receivers. It is compatible with Avatar Goggles X, Avatar Goggles L, and Ascent Goggles.
Can I use the Alink Controller while charging?
Yes. The device can be used while charging, allowing you to keep using it without interruption.
How long does pairing take?
The binding process typically takes about 1 minute.
Does the Alink Controller automatically reconnect?
When using the device for the first time, manual binding is required. The binding process typically takes about 1 minute. Once bound, the device can connect automatically for subsequent use.
