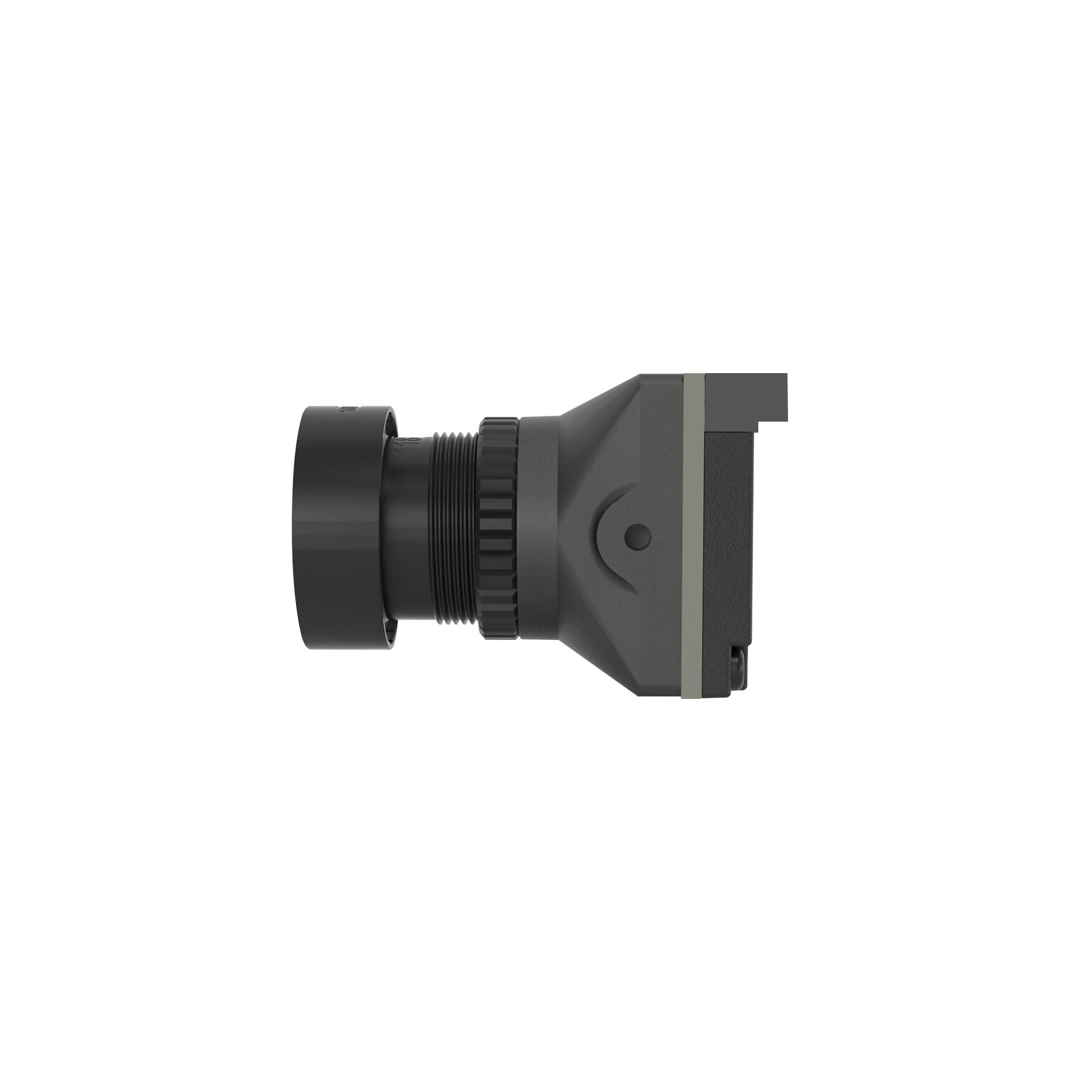

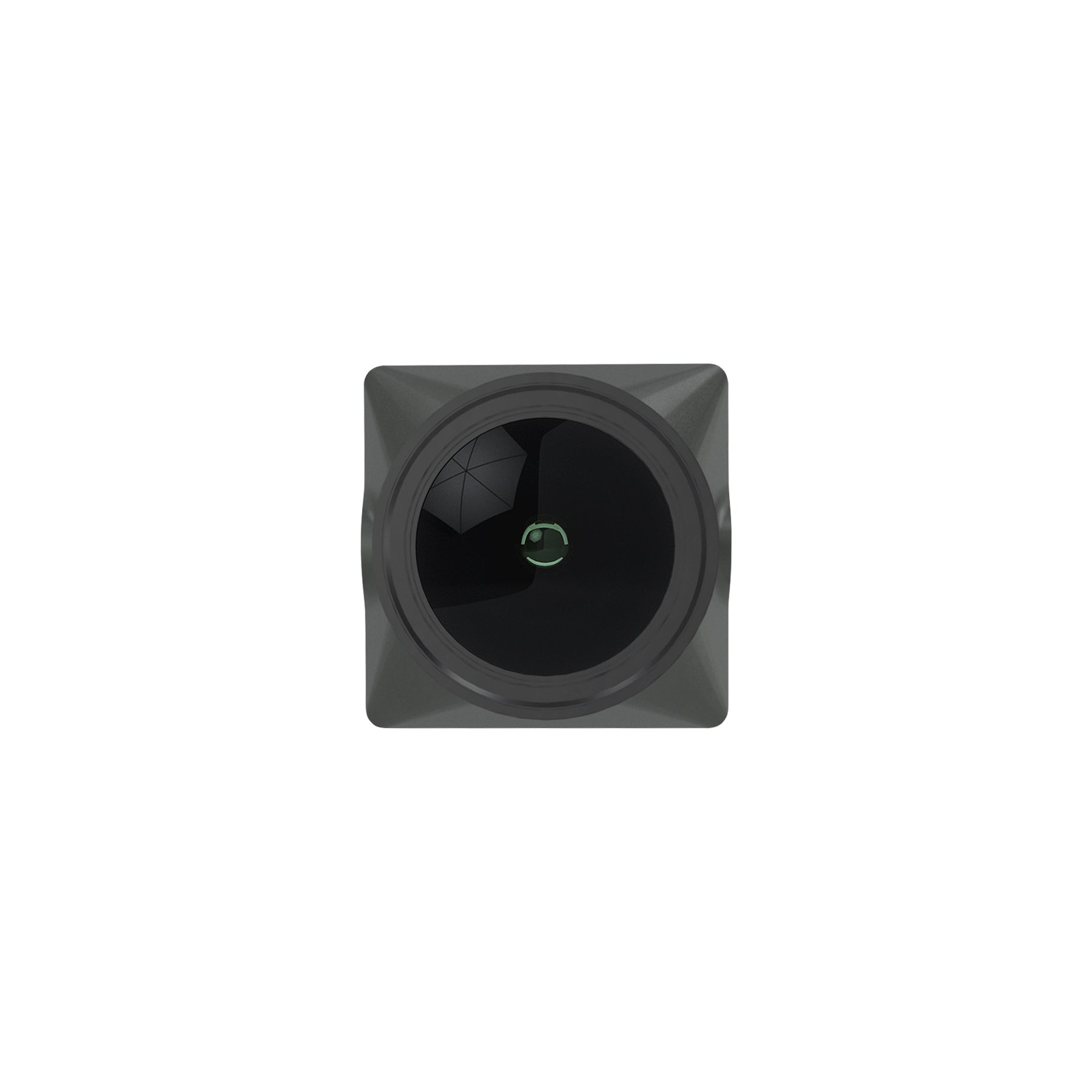

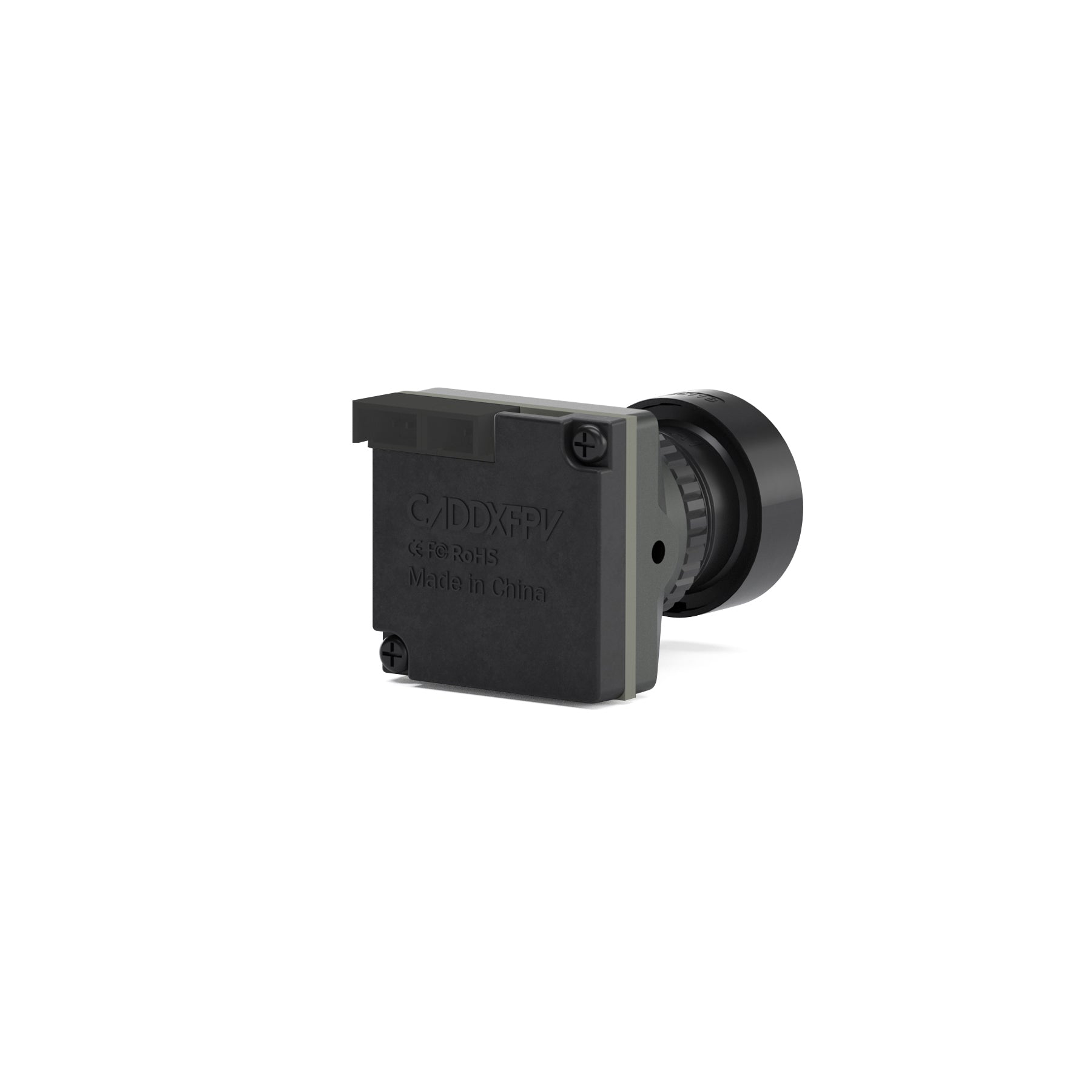

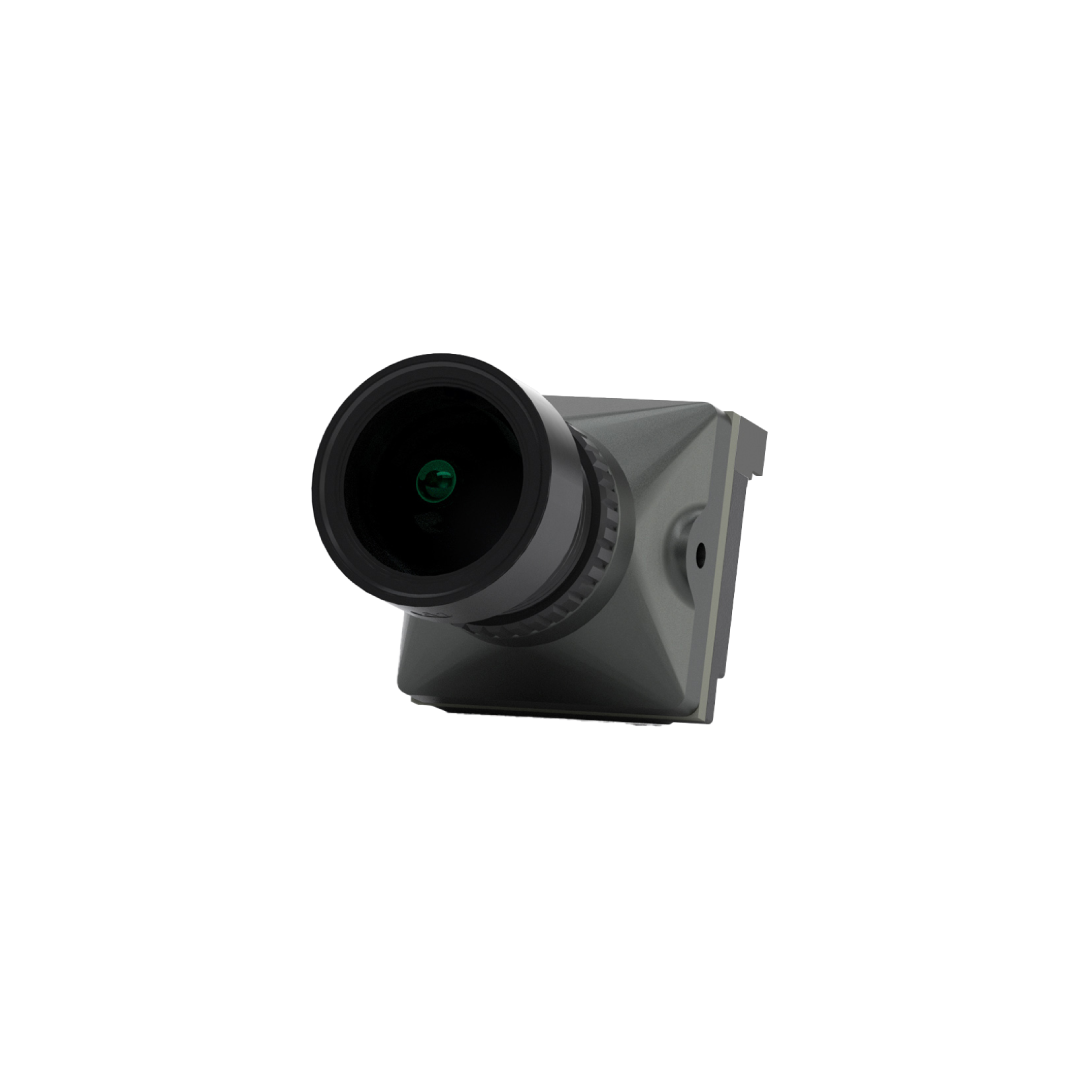

CADDXFPV Ratel Pro Analog Camera

SKU: MN01-4000B
Color
Price
Regular price $49.00
Regular price Sale price $49.00
Save <span class=transcy-money>$-49</span>
/
Shipping calculated at checkout.
  • Secure payments

features:

●Day and night ●Blacklight
●1500TVL ●Super WDR
●4.5V-27V ●FOV125°



Bullet Points:

Featuring a blacklight technology, Ratel Pro displays real color images during the day and displays to black-and-white visuals at night, ensuring optimal visual performance in diverse lighting conditions.



Ratel Pro delivers excellent daytime clarity, setting new standards in visual excellence within the analog camera domain.



Using BSI 1/1.8INCH large sensor and enhanced algorithm, the illumination is doubled compared to ordinary night vision cameras. Even in low-light conditions, Ratel Pro achieves outstanding night vision, providing clear and reliable imagery for uncompromised visibility.



Supports WDR, bounteously satisfying the pursuit of detailed shooting whether in bright or dark environments.


Switch effortlessly between 16:9 and 4:3 screen ratios with Ratel Pro, providing flexibility to adapt to different preferences and scenarios.



Designed with 125° FOV, Ratel Pro offers pilots a natural visual experience during flight, restoring the authenticity of the scenes.



Featuring a metal case, the lightweight design improves durability and heat dissipation.



Model Ratel PRO
Image Sensor 1/1.8" Inch sensor
Horizontal Resolution 1500TVL
TV System NTSC & PAL  (changeable)
IMAGE 16:9 & 4:3   (changeable)
WDR Super WDR (HDR)
Min. Illumination 0.00001 lux
Lens 5Mega
Color Black
Synchronization Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio >60dB (AGC OFF)
Video Output CVBS
OSD manual Support
DNR 3-DNR
FOV 125°
Language (ENGLISH/中文/繁中文/Русский/ESPANOL/ITALIANO/ FRANCAIS/POLSKIM/ PORTUGUES/日本语)
Day/Night Auto/Color/B&W/EXT
Dimensions 19mm*19mm
Wide Power Input DC 4.5-27V
Work Temperature -20℃~+60℃
Work Humidity 20%~80%

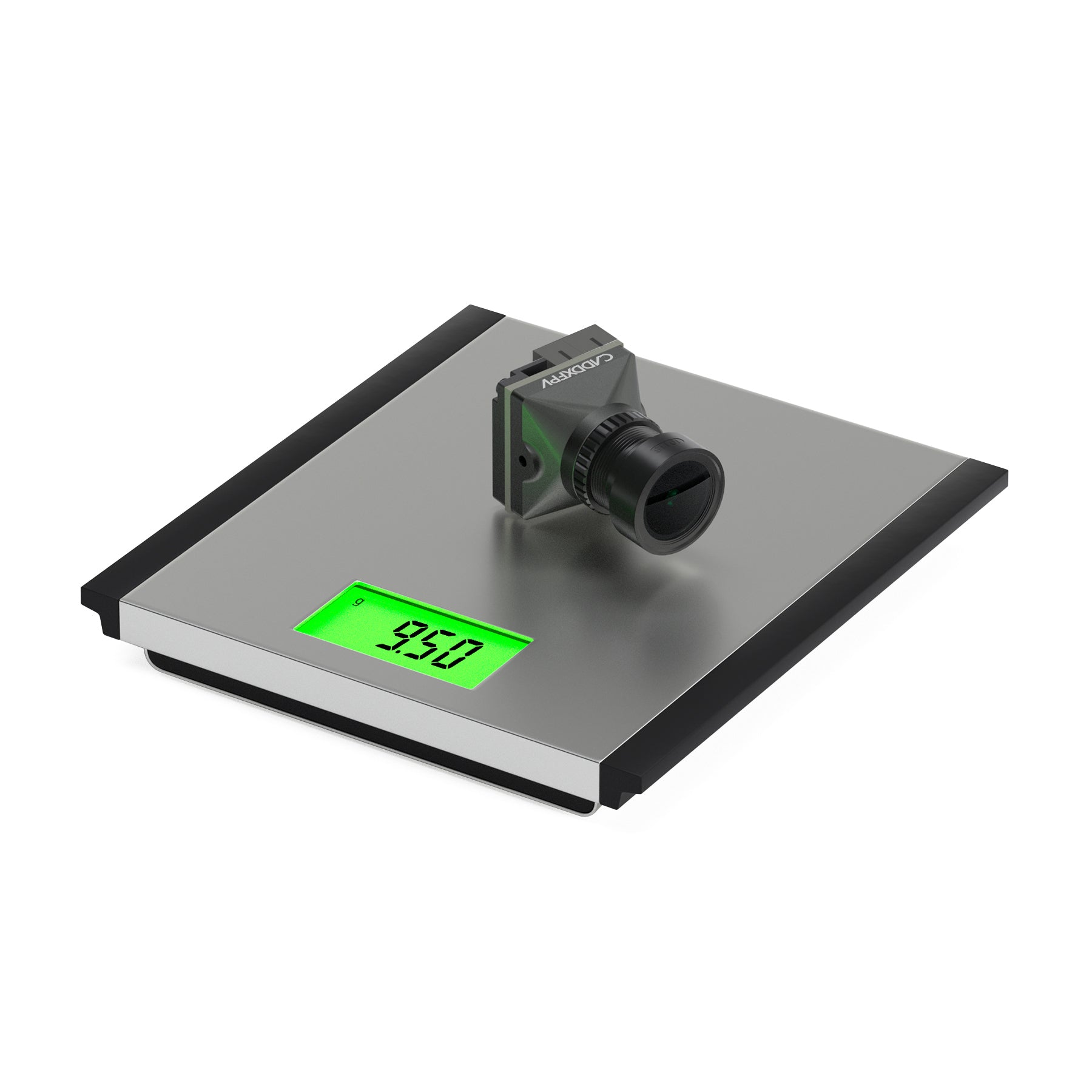

Weight 9.5g

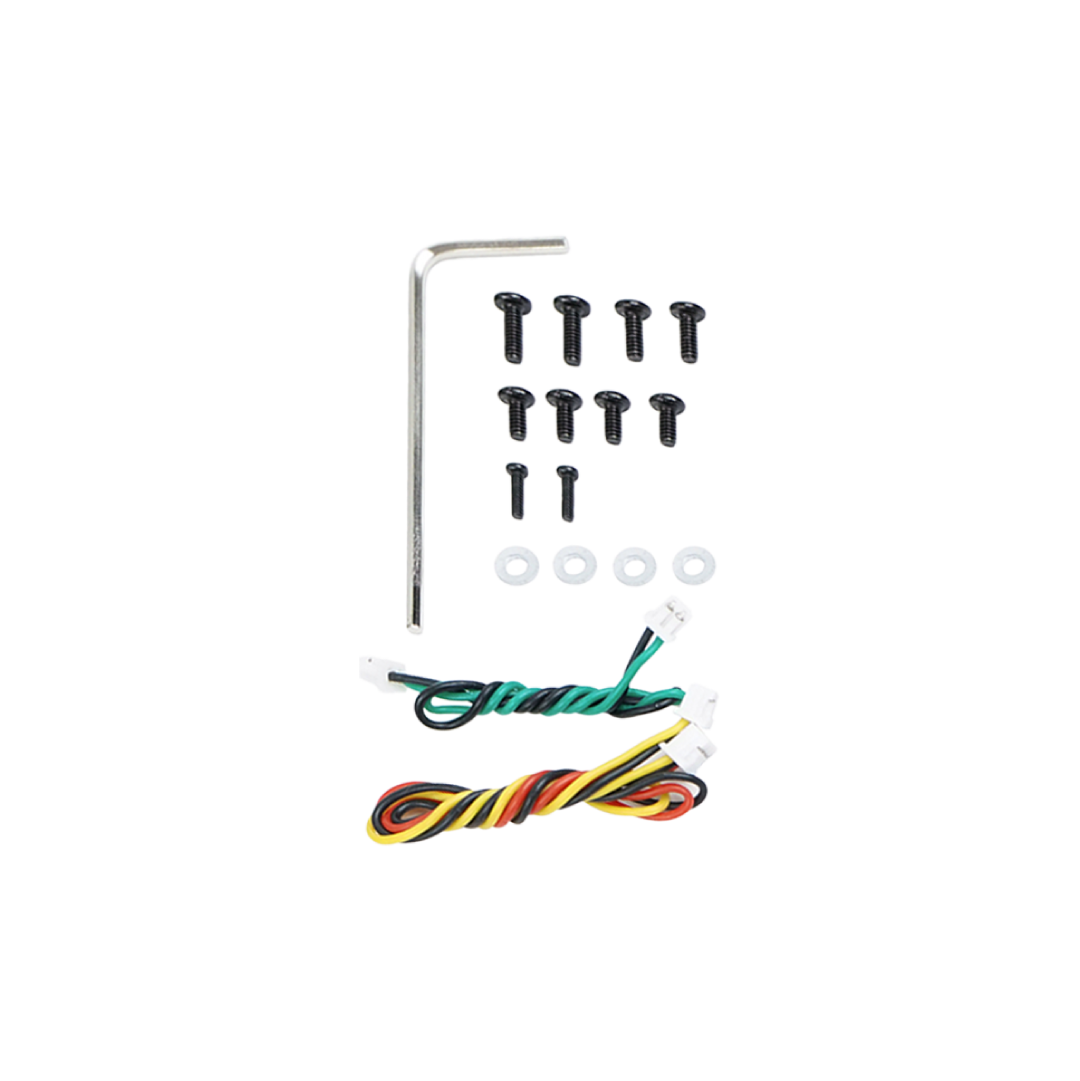

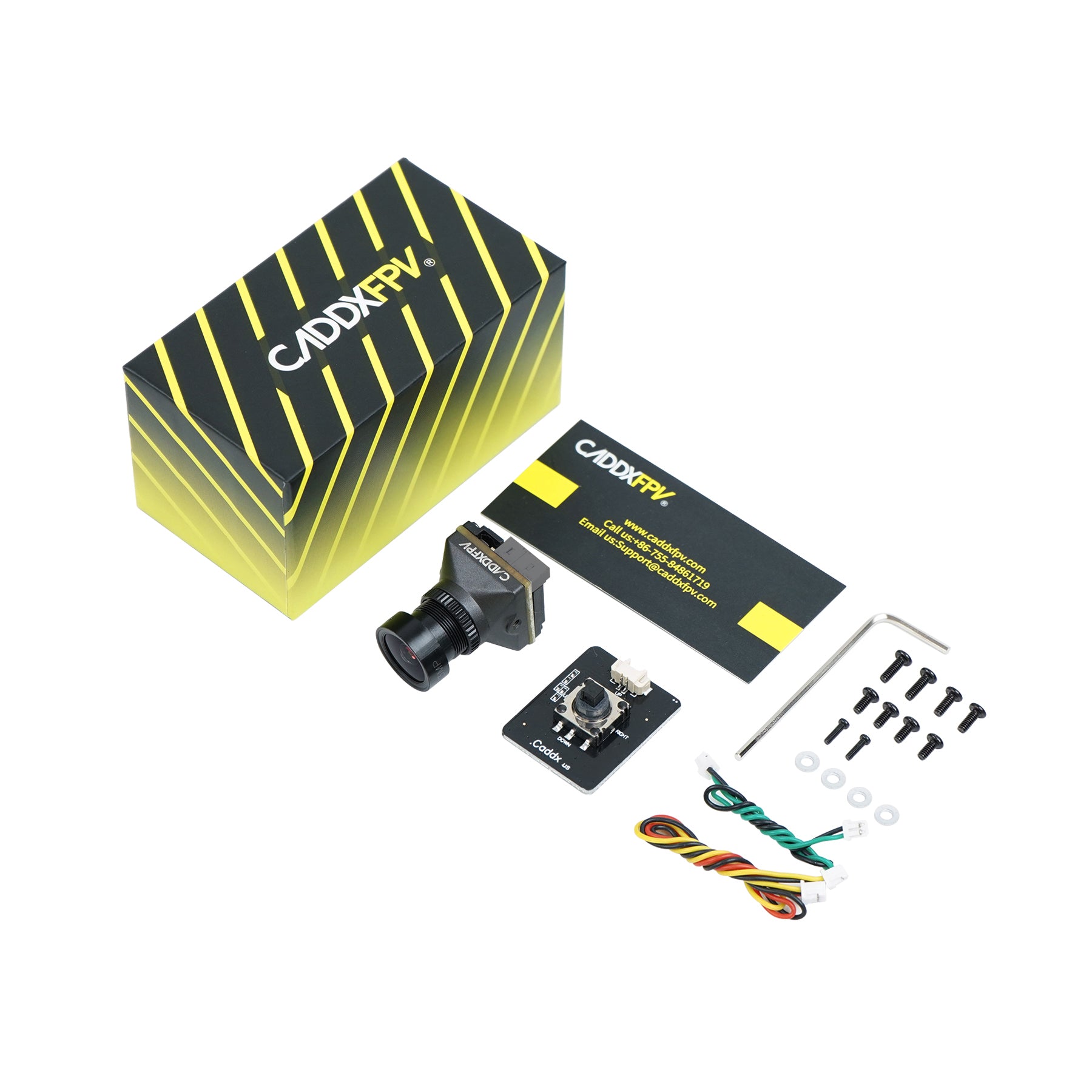

Packing List:
