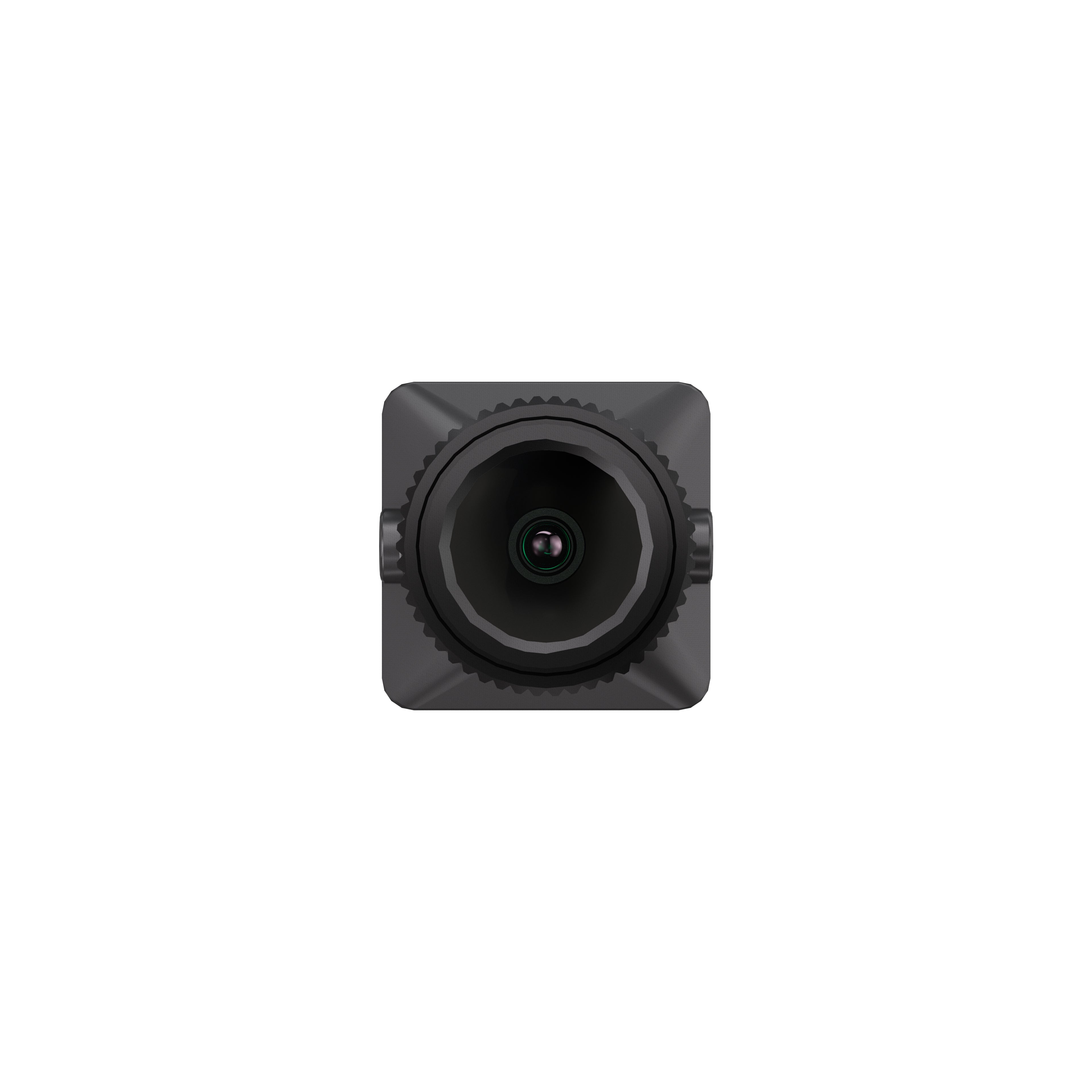

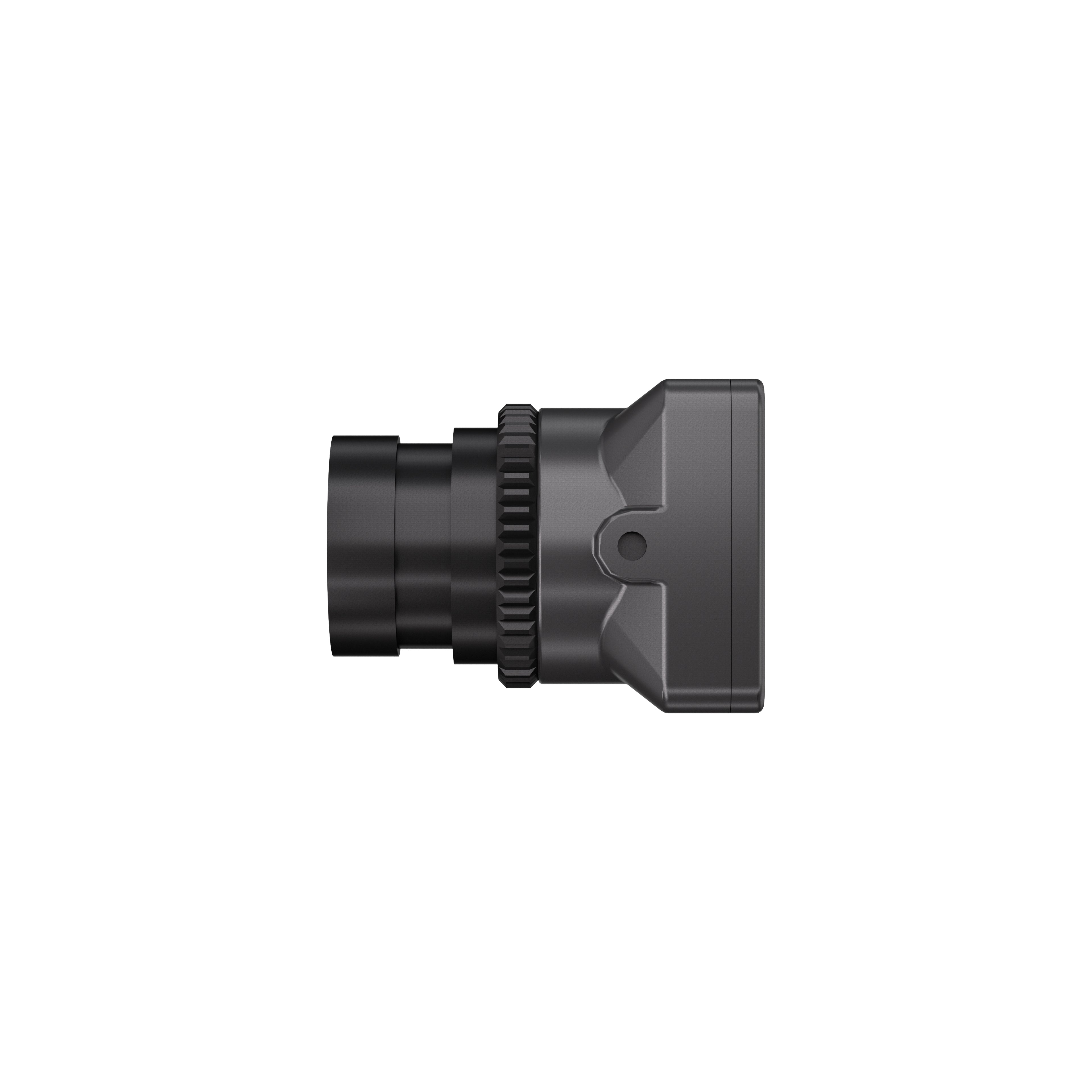

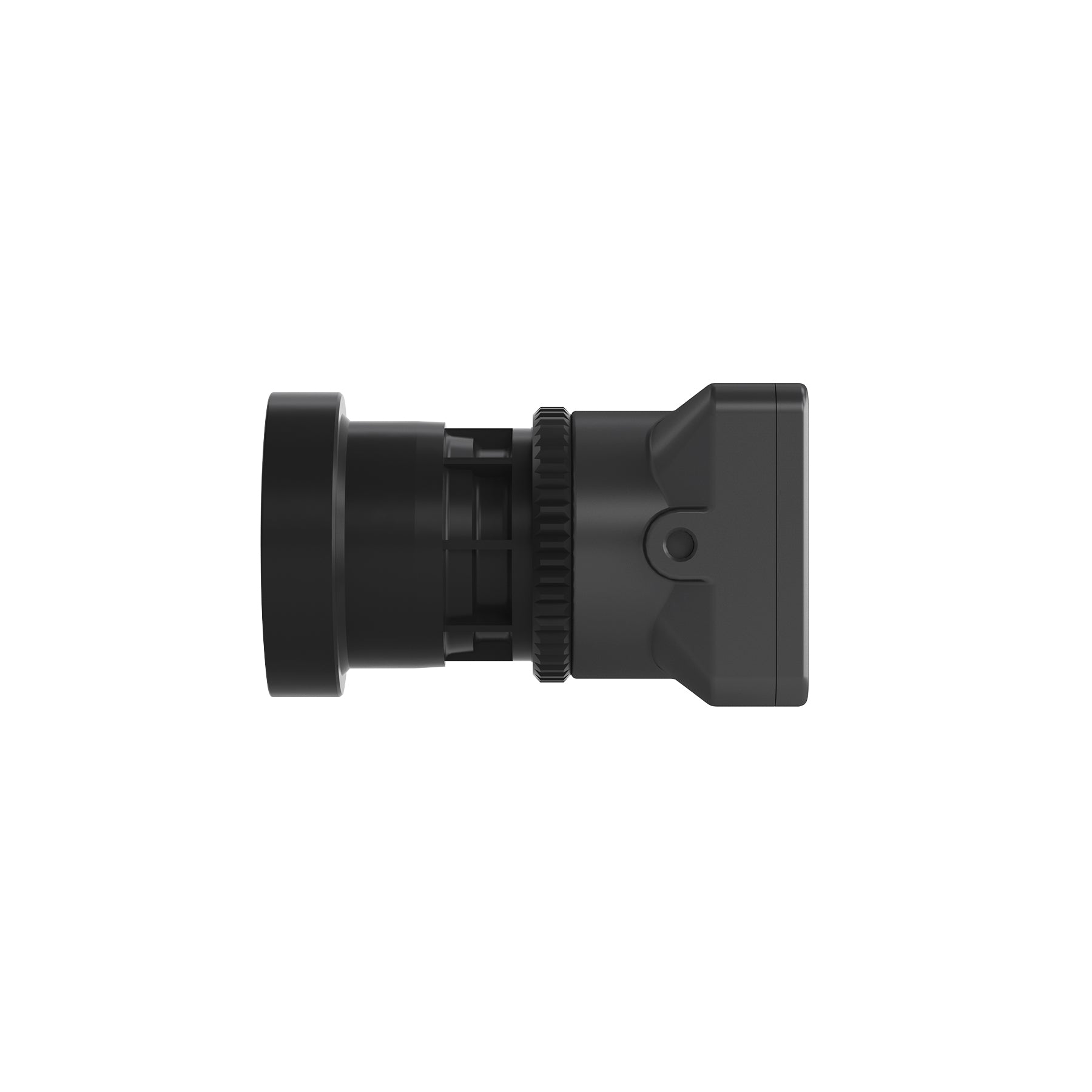

CaddxFPV Infra V2 Camera
- AI Night Vision Enhancement: AI algorithm improves low-light visibility by 30%—ideal for night navigation and dark environment flights.
- Stable Visibility in Mixed Lighting: WDR technology reduces glare and preserves detail in backlit or shadowed areas, improving flight awareness.
- Native 4:3 Aspect Ratio for FPV: Delivers a full, uncropped analog feed—perfect for pilots seeking accurate perspective during navigation.
- Wide 131.6° Field of View: Expansive FOV enhances situational awareness, ensuring safer navigation in complex environments.
- Compact & Durable Metal Design: Slim, heat-dissipating metal case improves installation flexibility and withstands demanding flight conditions.
Features：
| ●New V2 AI Image Enhancement | ●High Resolution |
| ●Reduced Size and Dimensions | ●Black and White Sensor |
Bullet Points:
1. Powered by the new Infra V2 AI night vision enhancement algorithm, it boosts image clarity by more than 30% in low-light conditions. The upgraded AI processing chip also enables a more compact processor module, making the device thinner and lighter than ever.
2. Using AI multi-frame algorithms to enhance dynamic range during night vision, effectively suppressing overexposure/underexposure in backlit scenes and preserving full image details. Compared to traditional color cameras, its sensitivity is much improved, allowing for better capture of object shapes and contours.
3. The image sensor outputs in a native 4:3 aspect ratio, providing a full, uncropped image with sharp pixel clarity, letting you fully immerse in every flight moment with unmatched visual precision.
4. Supports WDR, 100% satisfying the pursuit of detailed shooting in dark environments.

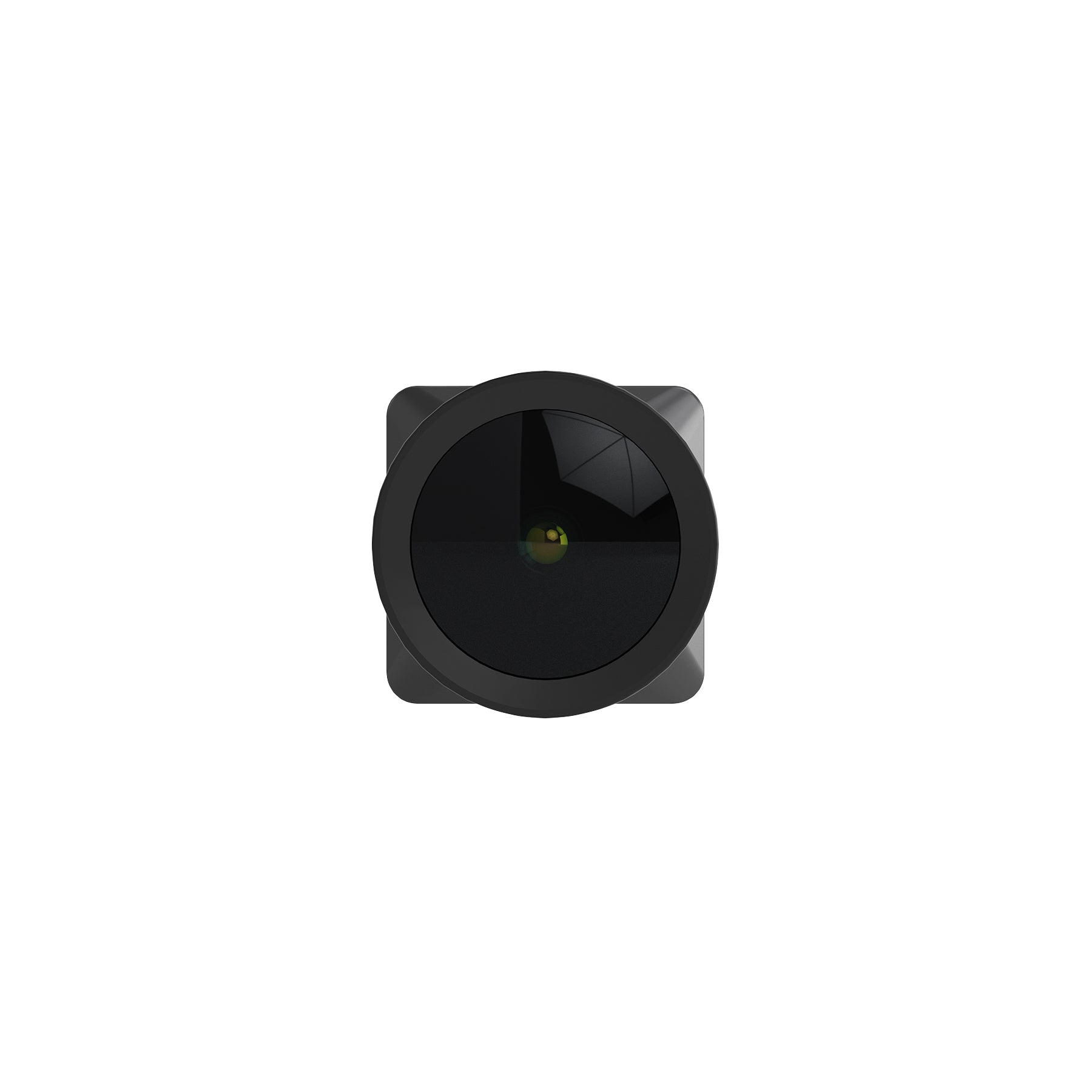

5. Designed with a 131.6° ultra-wide-angle lens, the Infra V2 camera offers FPV pilots an expansive real-time view, improving situational awareness, enhancing image clarity, and capturing immersive, true-to-life visuals during every flight.
6. Featuring a metal case, the lightweight design improves durability and heat dissipation. Utilizing a brand-new optical design to reduce lens size while ensuring the same light intake as Infra V1, making installation easier.
Specification
| Model | Caddx Infra V2 |
| Image sensor | 1/1.8 inch |
| Pixel size |
8μm |
| Horizontal resolution | 1500TVL |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| FOV | 131.6°（D） |
| Output format | CVBS PAL |
| Frame rate | 50fps |
| Image quality | Black&White |
| Video interface | 1xPAL |
| Supply Voltage | 9~24V |
| Typical Power Consumption | <1.2W |
| Aspect ratio | 4:3 |
| Operating temperature | -20℃~60℃ |

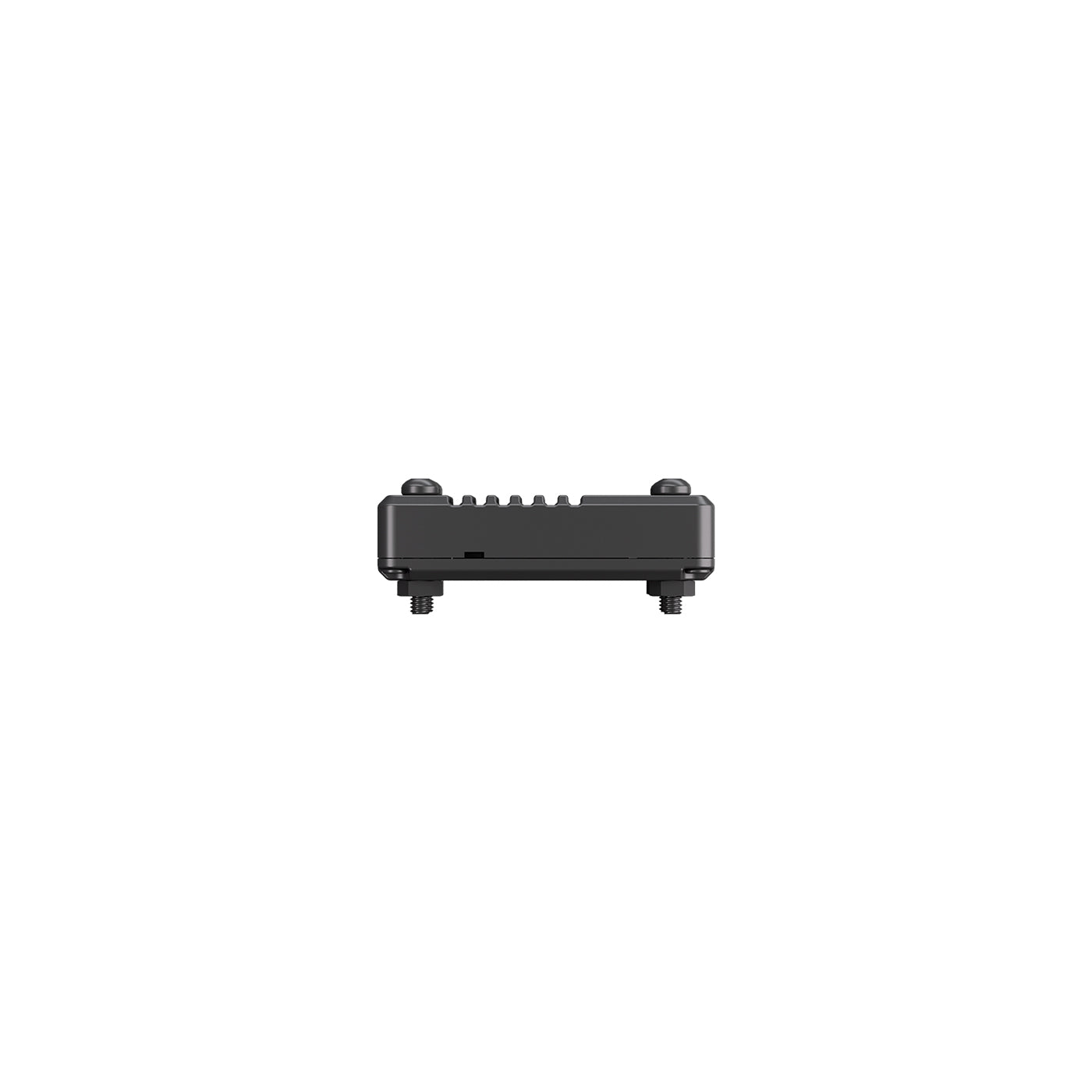

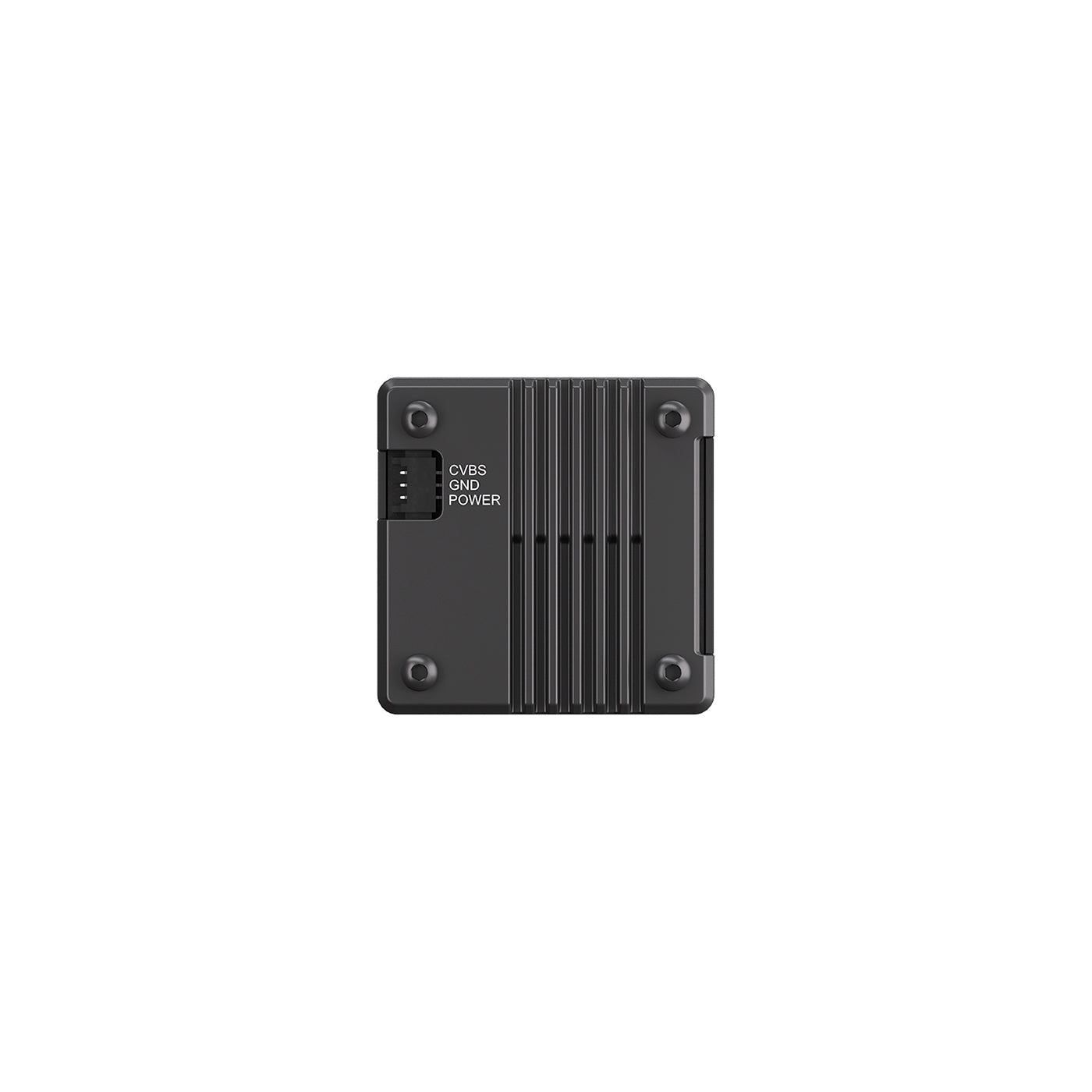

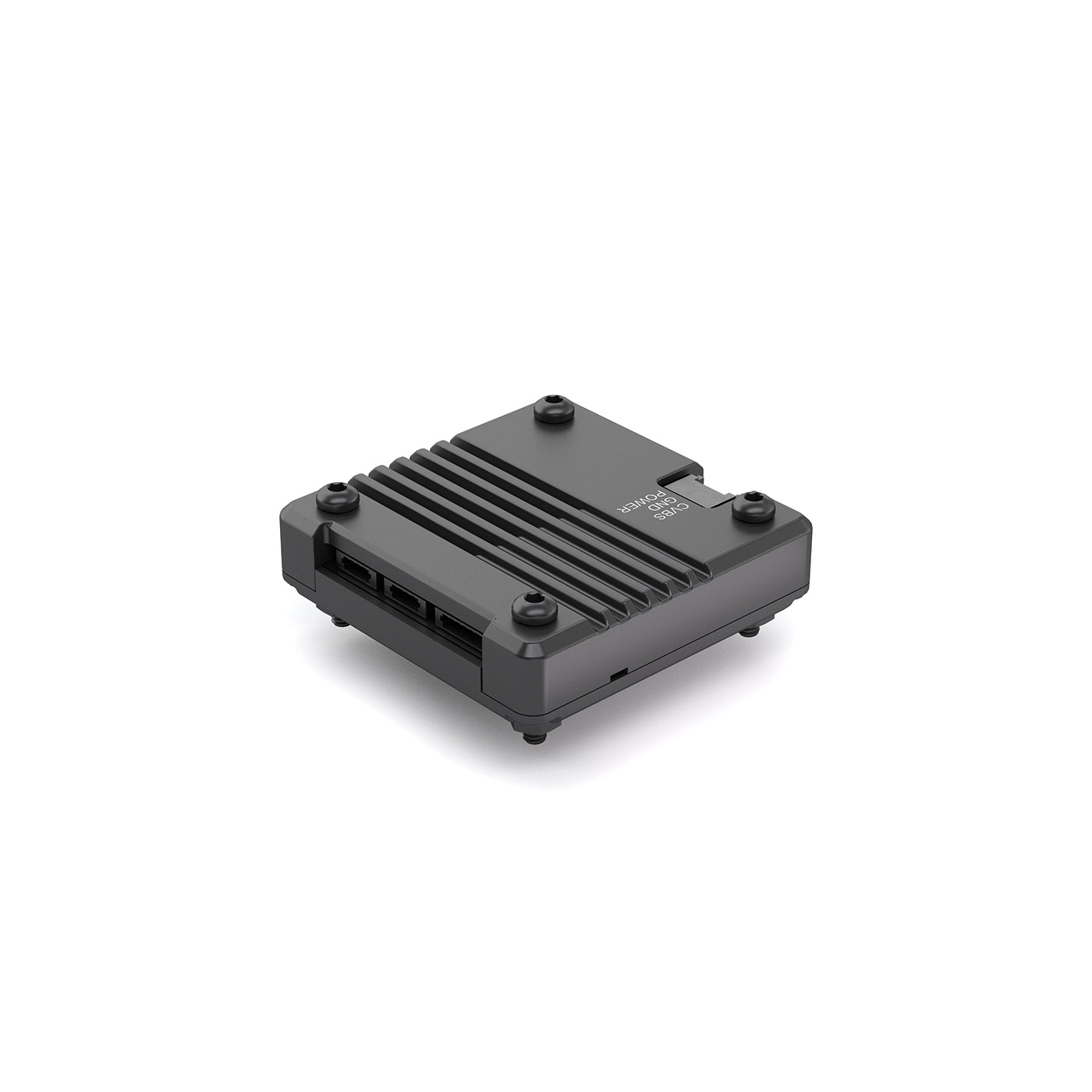

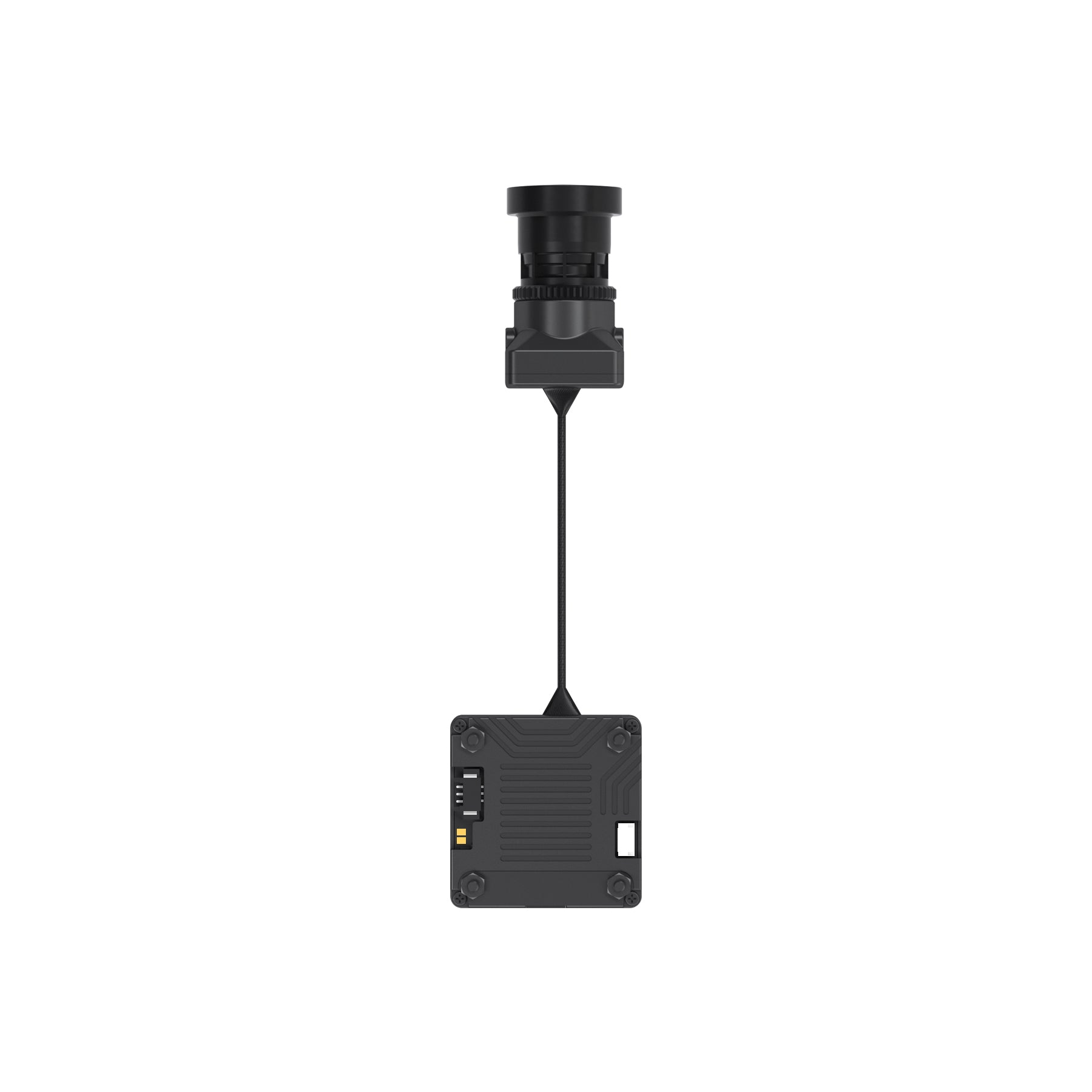

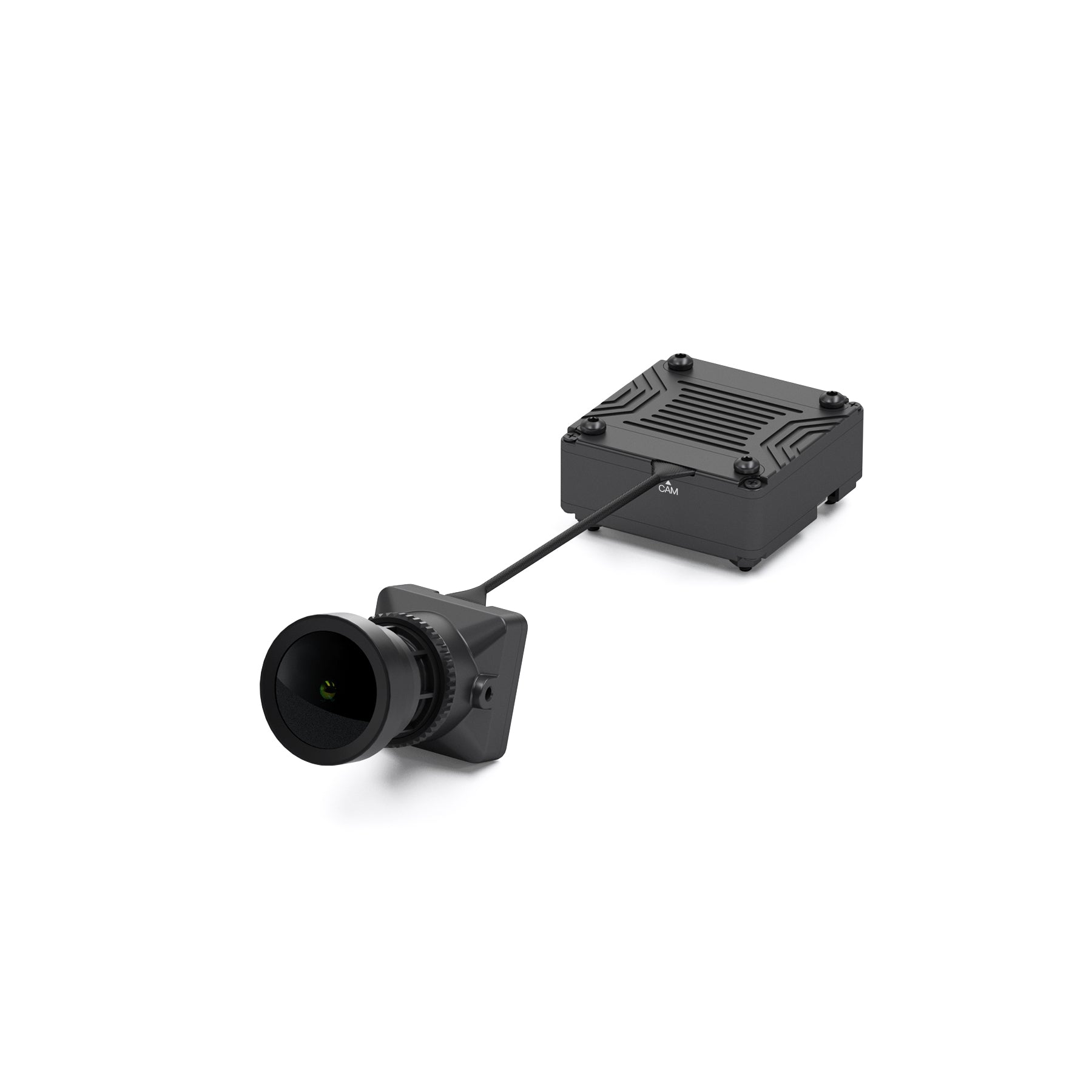

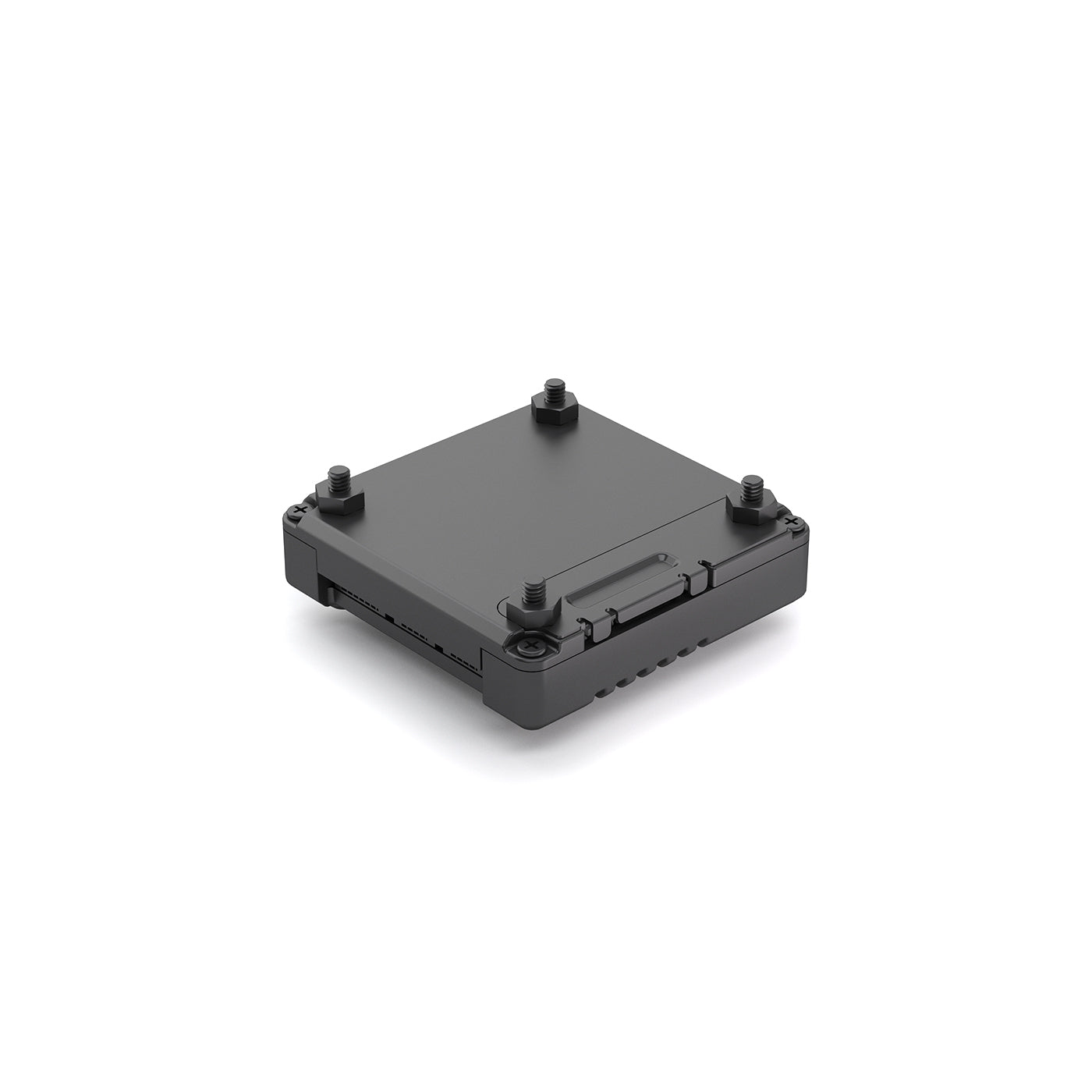

| Dimensions | Camera: 20.5x20.5x26.9mm AI Box: 34x34x13.2mm |
| Model | Caddx Infra V1 |
| lmage sensor | Black&White Sensor |
| Horizontal Resolution | 1500TVL |
| FOV | 120° |
| Ratio | 4:3 |
| Min.lllumination | 0 Lux |
| WDR | Super WDR |
| LENS | M16/F1.0/2.8mm |
| Frame Rate | 50/60fps |
| Power Consumption | <1.5W |
| Supply Voltage | 9V~24V |
| Output | PAL |
| Analog Interface | CVBS |
| Latency | Average Latency 20ms |
| lmage Quality | Allmage Enhancement |
FAQ
When will it be shipped?
In order to give pilots a better experience. Currently, each order will be shipped within 5 working days.
Does this include VTX?
No, Infra V2 is an analog system and does not include the VTX.
