Walksnail Avatar System
March 24 2023 – CADDX FPV
CaddxFPV, established in August 2017. Headquartered in Shenzhen, widely considered China’s Silicon Valley. We are committed to providing the best image, VTX and digital system accessories for FPV drones, so that the entire industry has a steady stream of innovation, and absorb more and more people to join the FPV field to enjoy the fun of fly, speed and exploring HD world.
Our wish is to promote the healthy development of the FPV industry, cooperate with leading companies, actively create a benign industry environment, and guide more innovative people to enter the FPV industry and change the existing FPV chaos, so that the industry can flourish and let the world know about FPV!
We have been developing the Walksnail Avatar System for more than 2 years, and it was not released until May 2022. During this period, we constantly listened to the feedback and suggestions of FPV pilots, constantly updated the firmware, and launched more products to meet the needs of users.
Then, we can briefly understand the Walksnail Avatar System we developed for FPV.

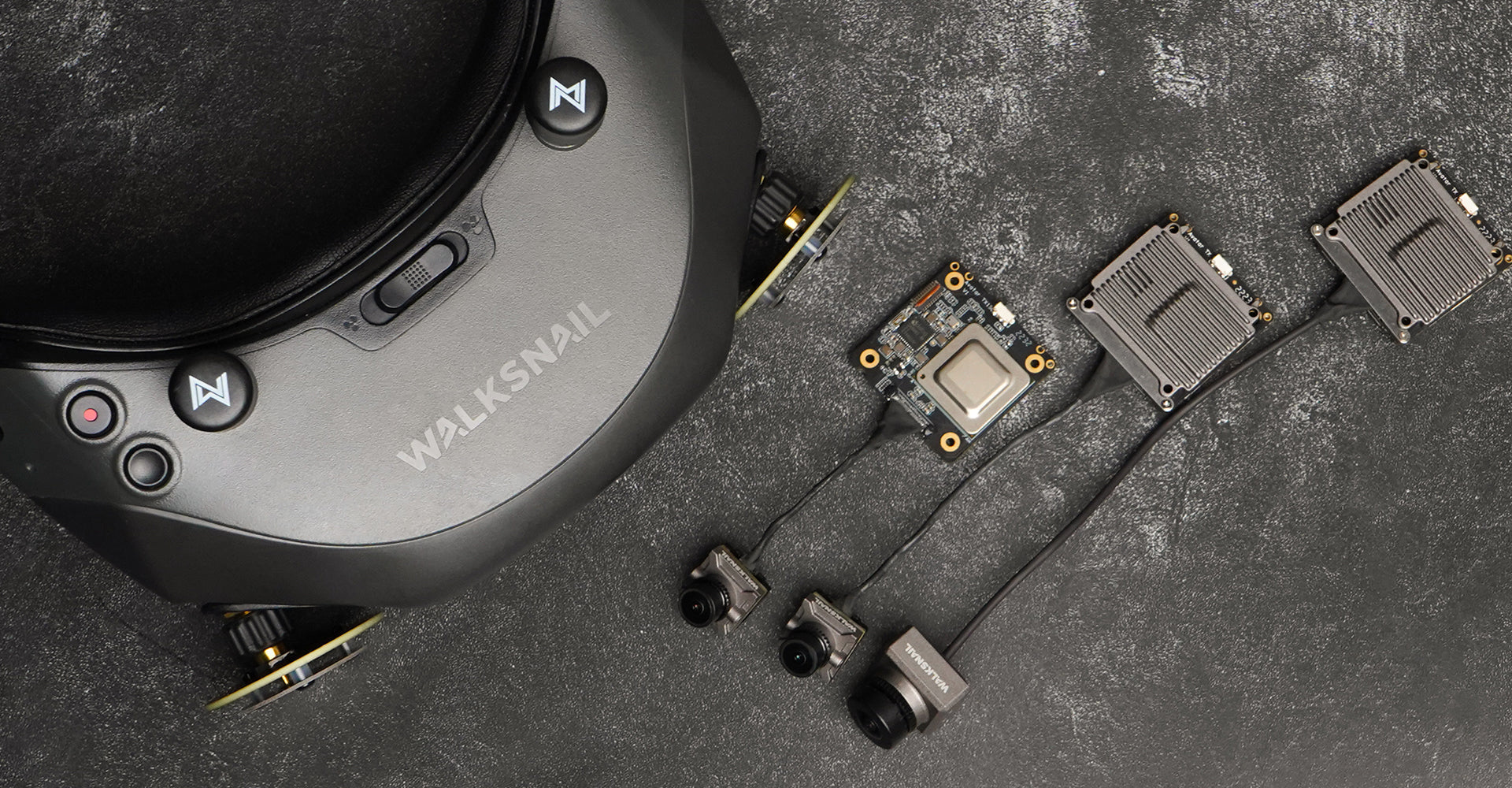

Walksnail Avatar System mainly includes: Walksnail Avatar HD goggles、 Walksnail Avatar HD VTX and Walksnail Avatar camera
| Walksnail Avatar HD goggles： | Table header 1 |
|---|---|
| Model | Avatar goggles |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | Type-C,microSD card slot,DC 5.5*2.1mm |
| IPD Mechanical Range | 58-70mm |
| IPD Visual Range | 54-74mm |
| Adjustable Focus Range | +2 to -6 Diopter |
| FOV | 46° |
| Screen Resolution | 1920*1080 |
| Screen Refresh Rate | 1080/100Hz |
| Screen Size | 0.49"1nch |
| Screen Material | OLED |
| HDMI Output | Support |
| Power Input | 7-21V(2S-5S) |
| SD Card | Support 256G |
| Walksnail Avatar HD VTX： | Table header 1 |
|---|---|
| Model | Avatar module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST1.0*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 33*33*9.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 16g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2(IPEX) |
| Walksnail Avatar camera： | Table header 1 |
|---|---|
| Model | Avatar nano/Avatar camera |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Weight | 3.5g/6g |
| Dimensions | 14*14*17mm/19*19*22mm |
| Coaxial Cable | 90mm/140mm |
Features:
1、1080P resolution, 22ms low latency, Canvas mode, 4km range, Dual antenna, Light weight design, HDMI output, Built-in 8G storage,6V-25.2V
2、Supports full OSD display, including betaflight, inav, kiss.
3、1080p/60fps，720P/100FPS, it will support 4K video recording.
4、VTX supports wide voltage output, 6S battery support, compact size and lightweight.
5、Dual-antenna Design,4km Long Range. Designed to carry dual antennas to achieve more stable and powerful signals.
6、Ranging Mode
Turn on the ranging mode to display the distance between the droneand goggles in real time,in case the drone is lost due to long distance flight.
7、8G Built-in Storage
The Avatar vtx comes with 8g built-in storage it can record 1080p or 720pHD flight videos without interference
Forthcoming features：
1、Fixed latency mode, suit for racing
2、It can connect to action camera and operate the goggles 3、DVR playback can be viewed on OSD
Caddx is committed to providing more and better products for FPV pilots and we are always happy to listen to pilots and improve. We believe that we can do better and better in the future!
