Ultra-low illumination night vision full color
Tired of grainy black-and-white footage after dark? This camera flips the script. With ultra-low light performance, it gives you bright, vivid color.
AI image quality enhancement
During the day, it preserves rich textures and sharp contrasts; at night, the AI algorithm dynamically enhances brightness, reduces noise, and restores true-to-life colors — ensuring your vision stays clear even in the darkest environments.
3x Optical Zoom with Consistent Clarity
Whether you're dialing in for distant targets or flying low and tight, the 3x zoom gives you smooth, stable footage without any image distortion.

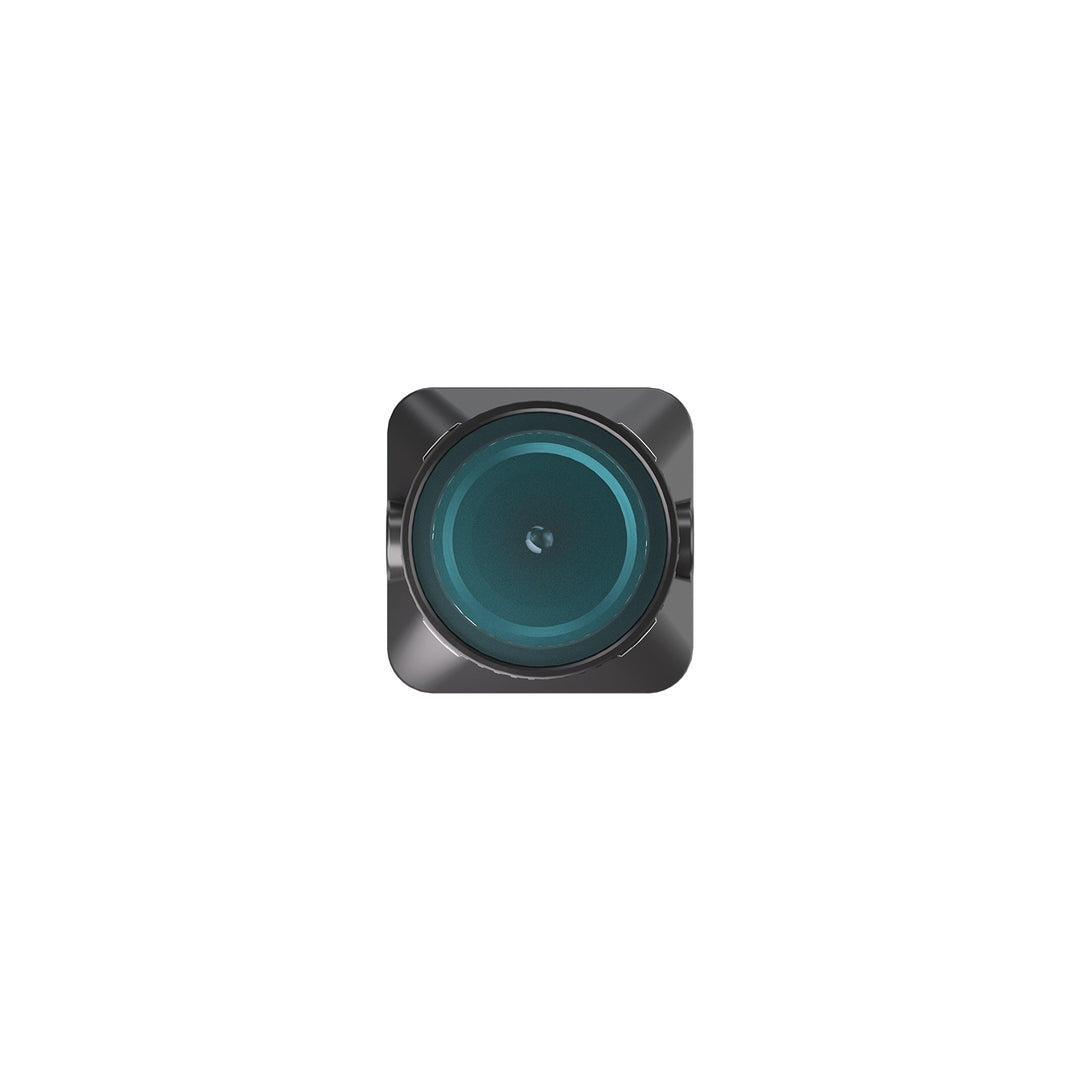

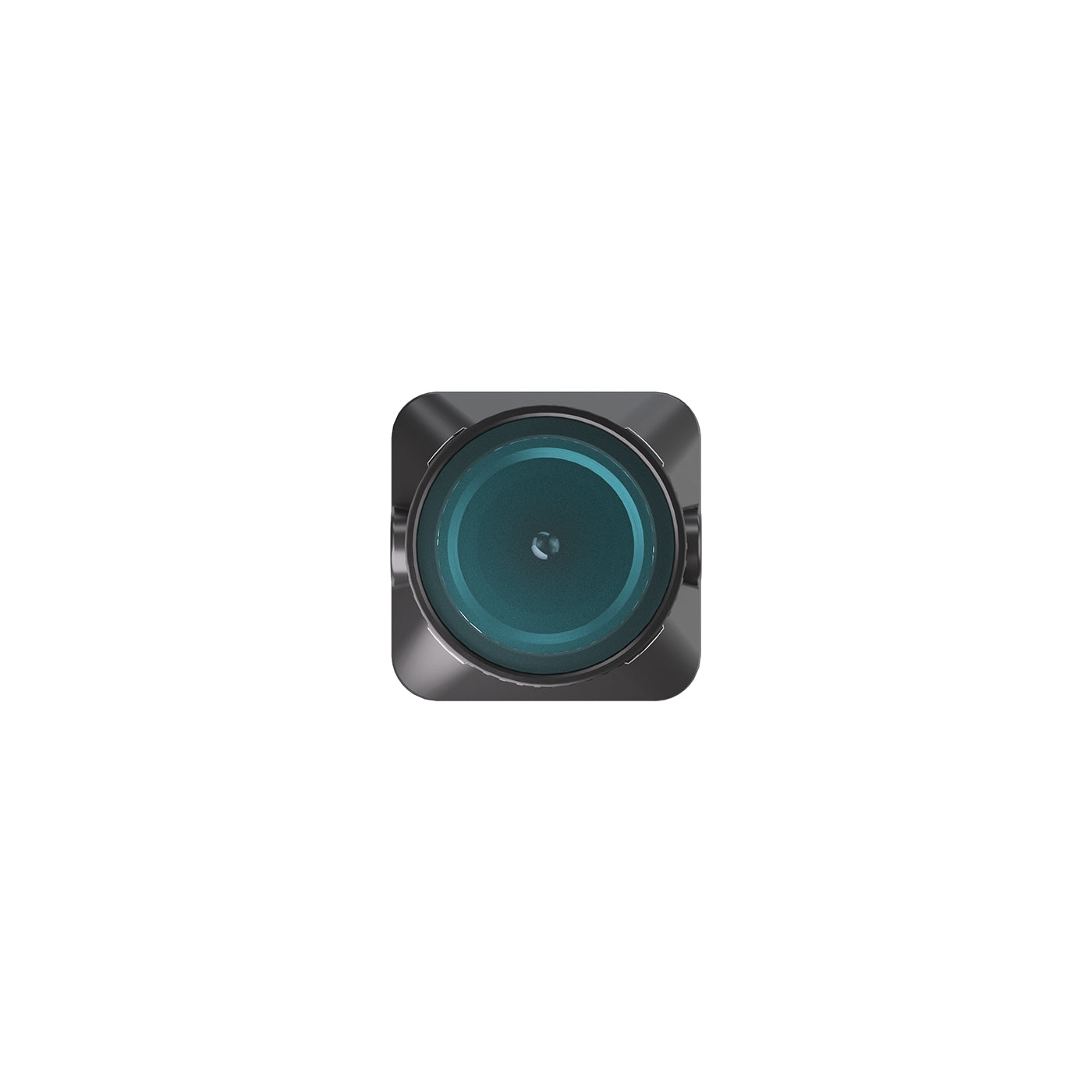

Removable Filter with D/N Switching
Easily switch between Day and Night modes via flight controller. Use the filter during the day for clear, true-to-color images; remove it at night to maximize brightness and light intake. Ideal for all-weather use with no compromise in image quality.
Versatile Vision for Every Mission
No more dull, gray images or guesswork. Gazer Analog Camera picks up every detail with precision, giving you crisp, vibrant video right when you need it.
Experience full-color clarity like never before with the ultimate night vision analog camera. Capture vivid details in low light, adapt to any condition, and zoom in without losing focus — day or night, see it all.
| Specification | |
| Model | Caddx Gazer |
| Image sensor | 1/1.8 inch |
| Resolution | Sensor: 1920x1080(2MP) Ouput: 720x576 |
| Horizontal resolution | 1500TVL |
| Focal length | 2.8mm |
| Aperture | F1.0 |
| FOV | 131.6° |
| Filter | Manually removable |
| Output format | PAL |
| Frame rate | 50fps |
| Magnification | 3x (zoomed in by FC) |
| Image quality | D/N (switched by FC) It is recommended to install the filter and use D mode during the day, and remove the filter and use N mode at night |
| Aspect ratio | 4:3 |
| Video interface | 1xPAL |
| Supply Voltage | 9~24V |
| Typical Power Consumption | <2W |
| Operating temperature | -20℃~60℃ |

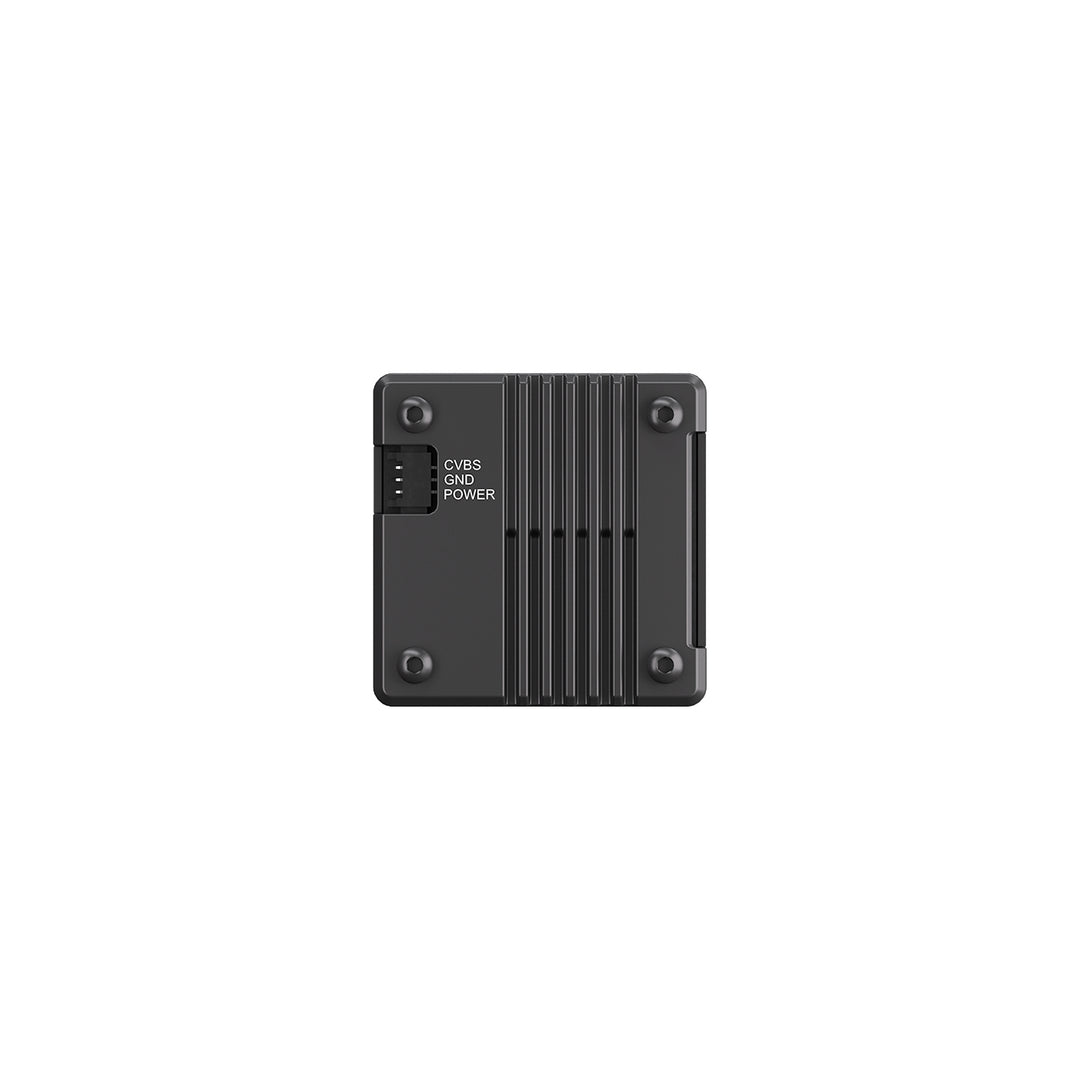

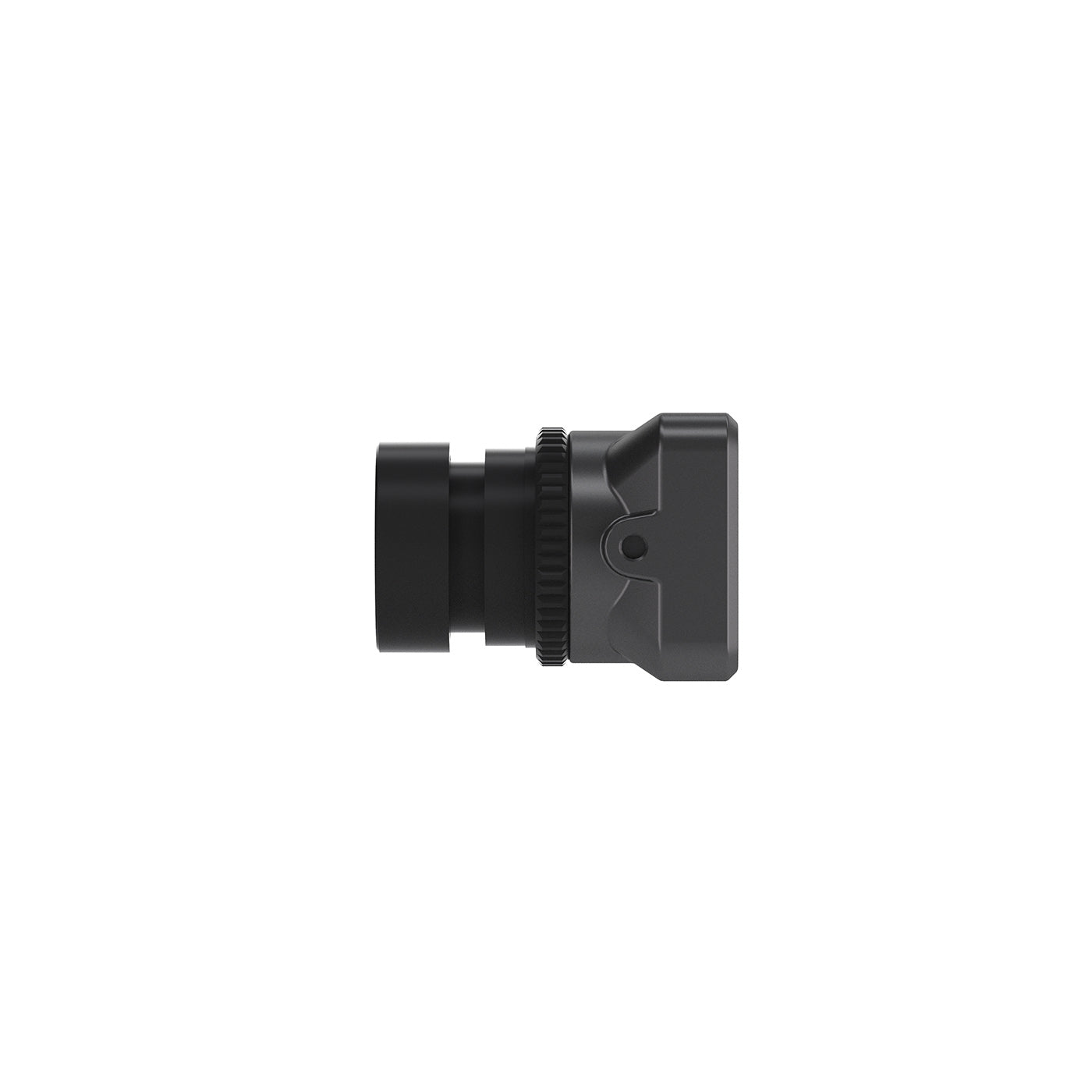

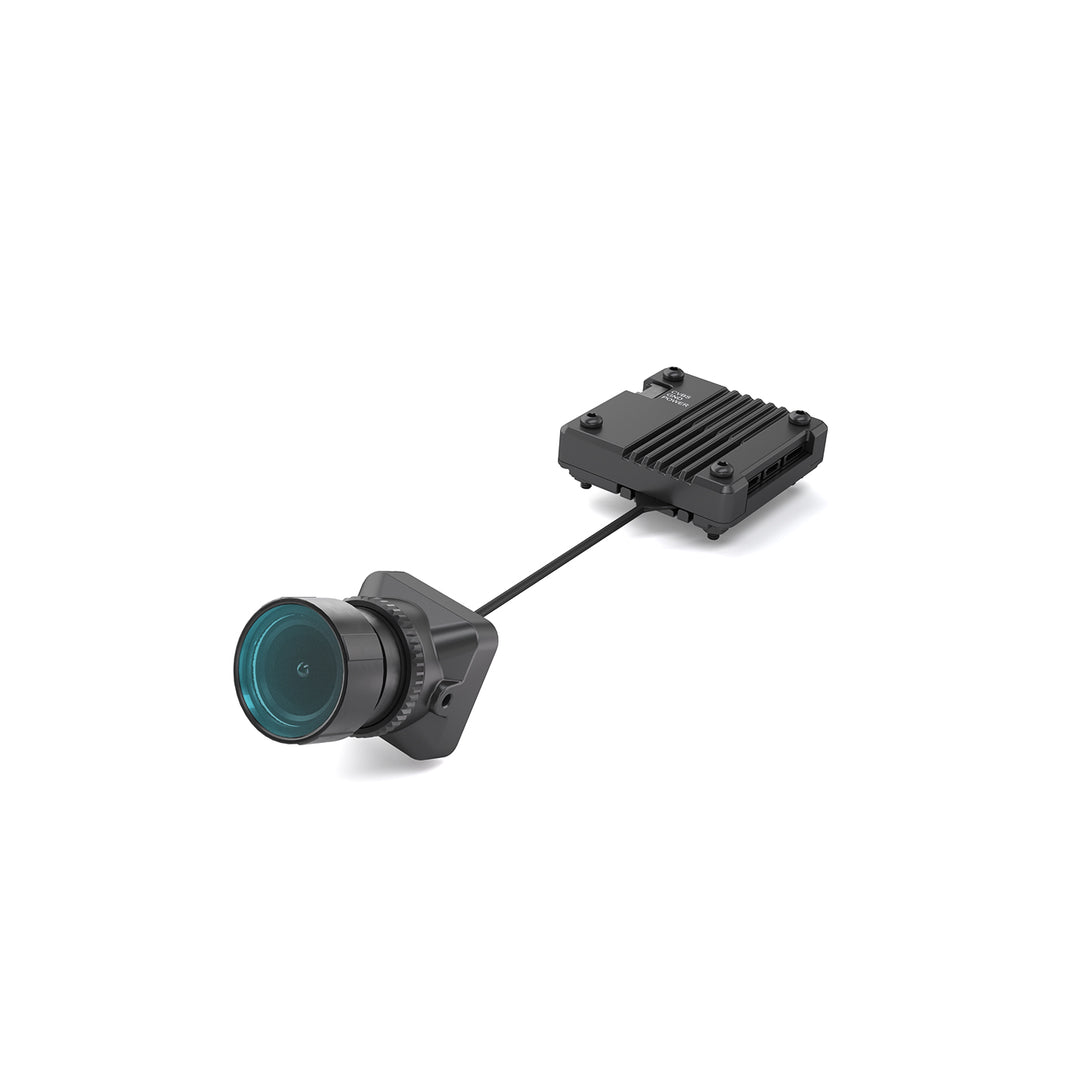

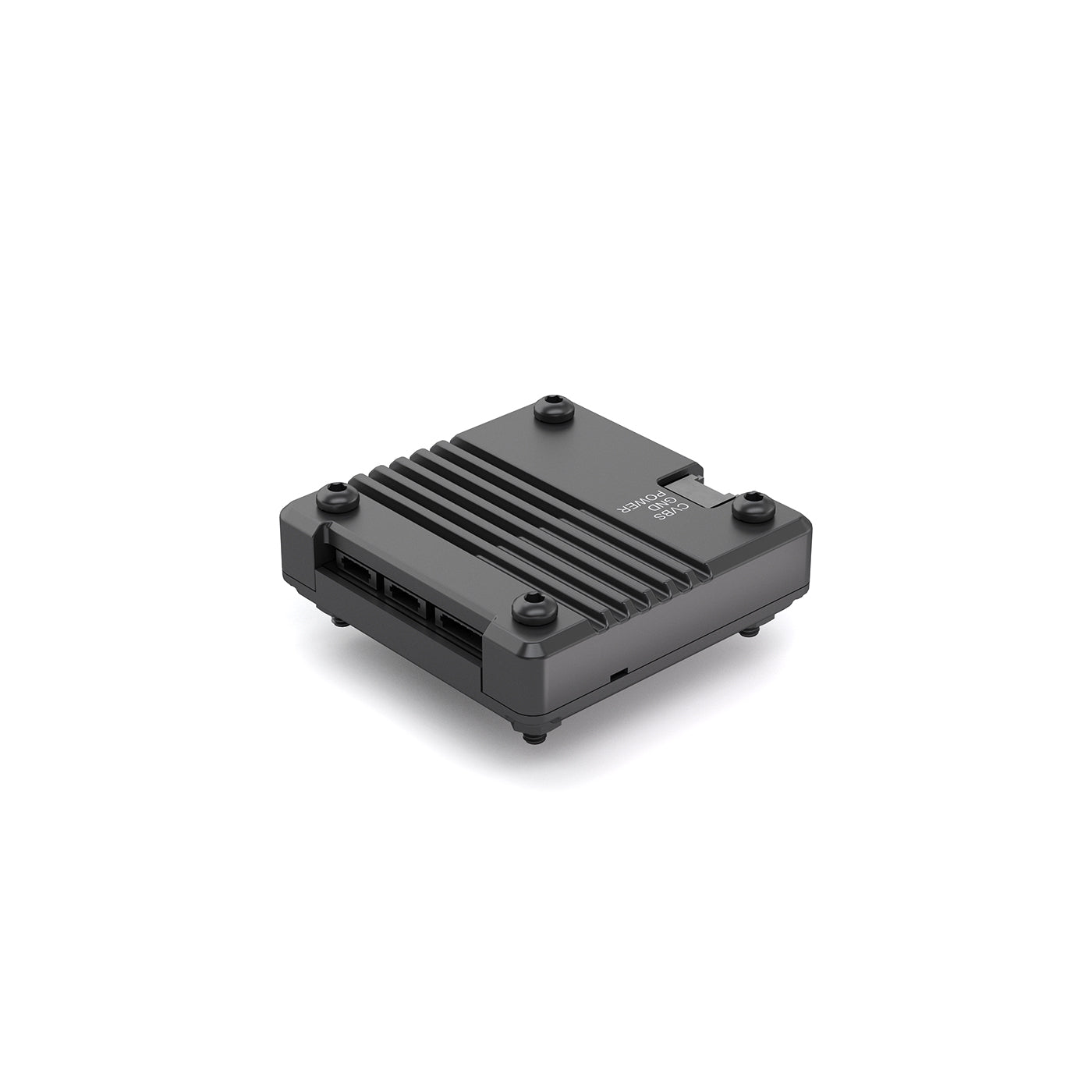

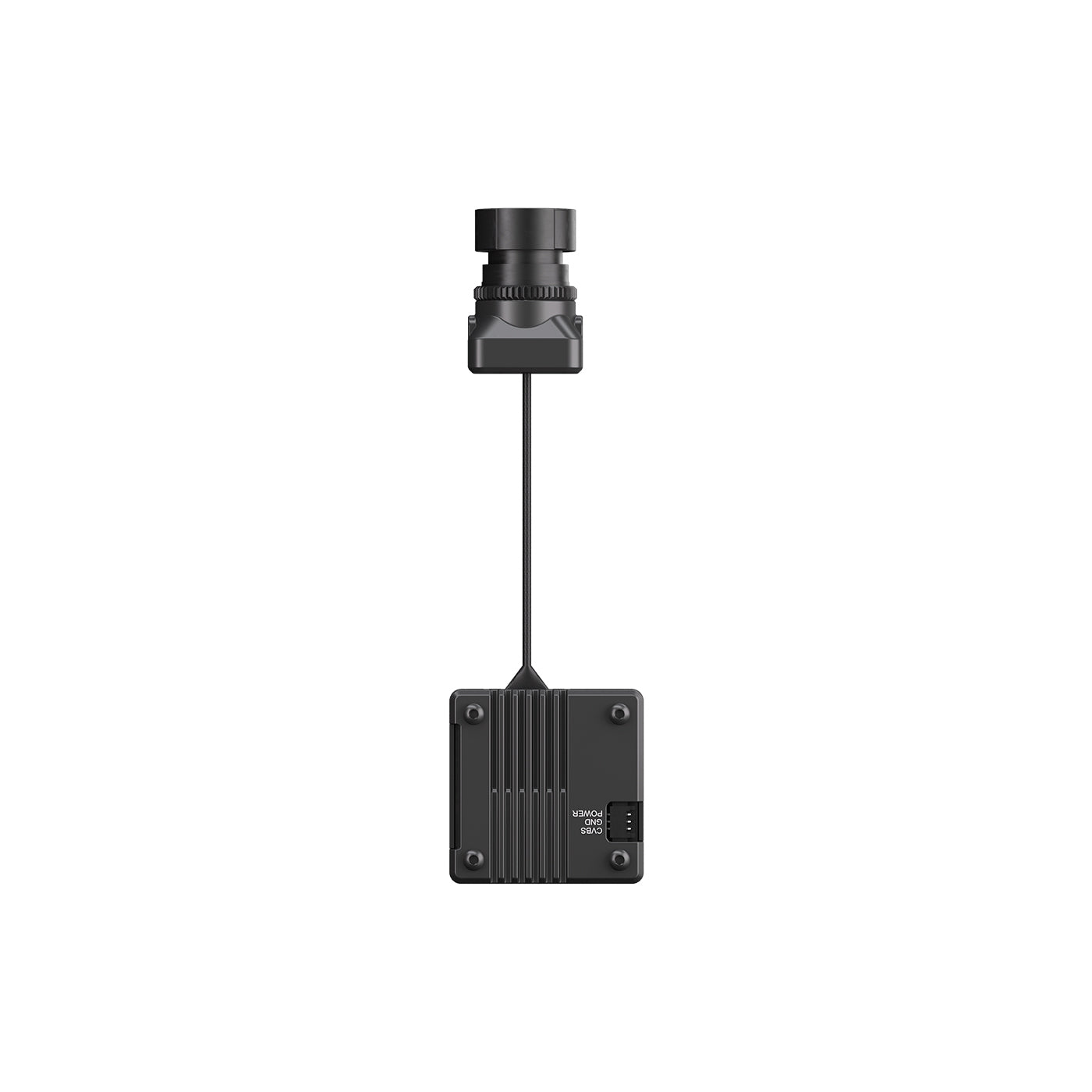

| Dimensions | Camera: 20x20x28.54mm AI Box: 34x34x8.65mm |
FAQs
It supports up to 3× digital zoom, controlled via flight controller or PWM. The image remains stable and clear after zooming, ideal for observing distant targets.
Yes. The AI optimization adjusts image clarity and color performance automatically based on lighting conditions, ensuring detailed and accurate visuals even in low light.
The Gazer uses an analog output interface and is compatible with most FPV analog transmission systems. It can be used with racing drones, RC vehicles, custom surveillance setups, and more.
Not at all. The removable filter ensures accurate color rendering during the day and increases light sensitivity at night. Perfect for all-day use.
Yes, they are included and do not need to be purchased separately.
